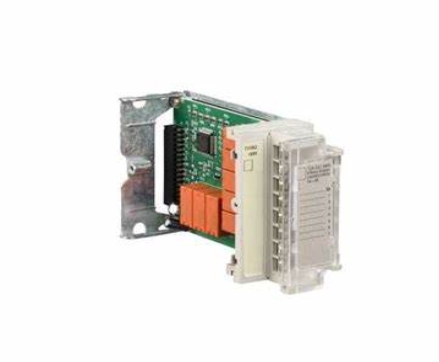

Schneider TSXDSZ32R5 Output Relay

Schneider TSXDSZ32R5 Electric PLC I/O Module Modicon TSX Micro 32 x I/O, 1 A 24, 240 VAC

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This relay discrete output module has normally open contacts with 32 screw terminal block outputs. It is an output module with an output voltage of 19V AC to 264V AC, 10V to 34V DC, a current consumption of 175mA and a power dissipation of 3.5W. The response time is <10ms. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.

Technical specifcations for TSXDSZ32R5

Main

Range of Product: Modicon TSX Micro automation platform

Product or Component Type: Relay discrete output module

Discrete output number: 32 screw terminal block

Contacts type and composition:NO

Complementary

Output voltage limits:

19...264 V AC

10...34 V DC

[Ith] conventional free air thermal current: 2 A

Power consumption in VA:

50 VA 24 V AC-12 resistive

24 VA 24 V AC-15 inductive

100 VA 48 V AC-12 resistive

200 VA 110...120 V AC-12 resistive

200 VA 200...240 V AC-12 resistive

50 VA 48 V AC-15 inductive

50 VA 110...120 V AC-15 inductive

50 VA 200...240 V AC-15 inductive

Power consumption in W:

24 V DC-13 inductive

24 V DC-12 resistive

Response Time: < 10 ms

Current Consumption: 175 mA

Power dissipation in W: 3.5 W

Isolation voltage: 1500 V 1 s

Insulation resistance: >= 10 mOhm
