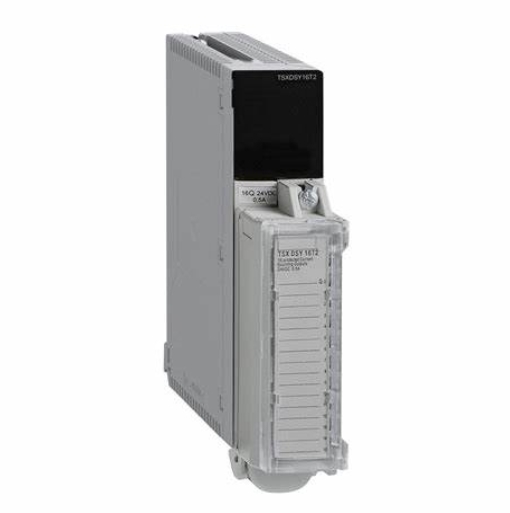

Schneider TSXDSY08T2 Discrete Output Module

Schneider TSXDSY08T2 MODICON PREMIUM DISCRETE OUTPUT MODULE- 8 O SOLID STATE

The Schneider TSXDSY08T2 is a discrete output module for Schneider Electric's Modicon Premium series PLCs. It essentially controls devices like lights, motors, or valves by providing on/off signals through its output channels.

Technical specifcations for TSXDSY08T2

Main

Range of product: Modicon Premium Automation platform

Product or component type: Discrete output module

Discrete output number: 8

Discrete output type: Solid state protected

Discrete output voltage: 24 V DC positive conforming to EN/IEC 61131-2 19...30 V

Discrete output current: 0.5 A

Complementary

Current per channel: 0.625 A

Maximum current per module: 4 A

Maximum leakage current: 0.5 mA at state 0

[Ures] residual voltage: 1.2 V

Response time: 1.2 ms

Switching frequency: 0.5/LI² Hz

Output overvoltage protection: By transil diode

Reverse polarity protection: Reverse mounted diode

Output overload protection: Electronic tripping on reactivation

Short-circuit protection: Electronic tripping on reactivation

Preactuator voltage detection threshold: 16 V

Minimum load impedance: 48 W

isalotion resistance: > 10 MOhm 500 V

Power dissipation: 1 W + 0.75 W x No of outputs x current per module)

Marking: CE

Electrical connection: Screw terminal block

Current consumption: 55 mA at 5 V DC

Module format: Standard

Net weight: 0.32 kg

Environment

Dielectric strength: 1500 V 50/60 Hz 60 s

Standards

89/336/EEC

CSA C22.2 No 213 Class I Division 2 Group B

UL 508

IEC 61131-2

CSA C22.2 No 142

73/23/EEC

CSA C22.2 No 213 Class I Division 2 Group D

CSA C22.2 No 213 Class I Division 2 Group A

93/68/EEC

92/31/EEC

CSA C22.2 No 213 Class I Division 2 Group C

Ambient air temperature for operation: 0…60 °C

Ambient air temperature for storage: -25…70 °C

Relative humidity

10…95 % without condensation for operation

5…95 % without condensation for storage

Operating altitude: 0...2000 m

protective treatment: TC

IP degree of protection: IP20

Pollution degree: 2
