Schneider TSXDMZ28AR TSX Micro PLC

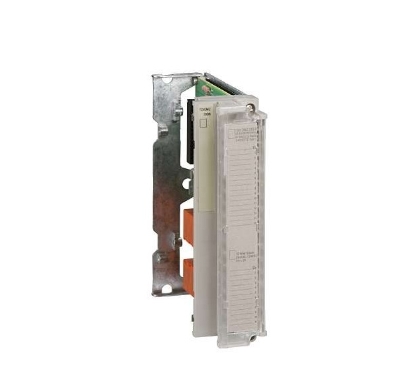

Schneider TSXDMZ28AR MODICON MICRO MICRO - 28 I/O 100…120 V RELAY

The Schneider TSXDMZ28AR is a TSX Micro PLC with 28 I/O points, specifically 16 inputs and 12 outputs. It's designed for small automation applications and is part of Schneider Electric's Modicon TM241 Programmable Logic Controller (PLC) series.

Technical specifcations for TSXDMZ28AR

Main

Range of product: Modicon TSX Micro automation platform

Product or component type: Discrete relay I/O base

Discrete input number: 16 screw terminal block

Discrete input voltage: 100...120 V AC

Discrete input frequency: 47...63 Hz

Discrete input current: 11 mA at 50 Hz; 13 mA at 60 Hz

Complementary

Input voltage limits: >= 74 V at state 1; < 20 V at state 0

Current state 0 guaranteed: <= 4 mA

Current state 1 guaranteed: >= 6 mA

Response time

< 10 ms output

11...18 ms input at state 0 to state 1 at 50 Hz

9...16 ms input at state 0 to state 1 at 60 Hz

11...24 ms input at state 1 to state 0 at 50 Hz

10...22 ms input at state 1 to state 0 at 60 Hz

Input compatibility: 2-wire proximity sensor

Load type: Capacitive

Current consumption: 125 mA

Power dissipation in W: 5.6 W

Output voltage limits: 19…264 V AC; 10...34 V DC

Contacts type and composition: NO

Power consumption in VA50 VA

24 V AC-12 resistive

110 VA 48 V AC-12 resistive

220 VA 110 V AC-12 resistive

220 VA 220 V AC-12 resistive

24 VA 24 V AC-15 inductive

24 VA 48 V AC-15 inductive

220 VA 220 V AC-15 inductive

110 VA 110 V AC-15 inductive

Power consumption in W

40 W 24 V DC-12 resistive

24 W 24 V DC-13 inductive

Isolation voltage: 1500 V for 1 s

Insulation resistance: >= 10 mOhm

Net weight: 0.5 kg

Environment

Standards: IEC 1131-2 Type 2

[Ith] conventional free air thermal current: 3 A
