Schneider TSXDEZ12D2 Modicon TSX Micro automation platform

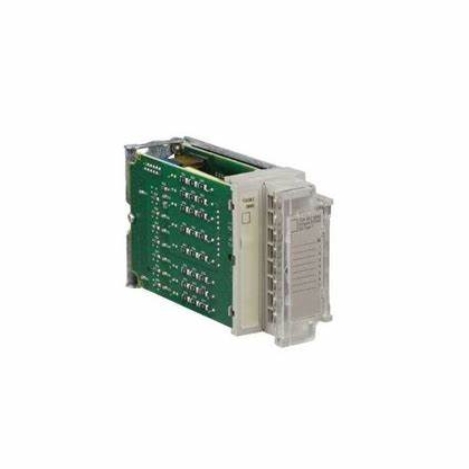

The Schneider TSXDEZ12D2 is a discrete input module for the Modicon TSX Micro line of Programmable Logic Controllers (PLCs) by Schneider Electric. It allows the PLC to read the status of 12 digital inputs from sensors or switches.
Technical specifcations for TSXDEZ12D2
Main
MainRange of Product: Modicon TSX Micro automation platform
Product or Component Type: Discrete input module
Discrete input number: 12 screw terminal block
Discrete input voltage: 24 V DC positive or negative; 19...30 V
Discrete input current: 9 mA
Input voltage limits
>= 11 V at state 1
< 5 V at state 0
Current state 0 guaranteed: <= 1.5 mA
Current state 1 guaranteed: >= 2.5 mA
Input impedance: 2.4 Ohm
Response time
0.1...7.5 ms at state 0 to state 1
0.1...7.5 ms at state 1 to state 0
Complementary
Standards: IEC 1131-2 Type 1
Input compatibility: 2/3-wire proximity sensors PNP/NPN
Discrete input type: Resistive
Current consumption
123 mA positive
107 mA negative
Isolation voltage: 1500 V AC 1 s
Environment
Net Weight: 0.51 lb(US) (0.23 kg)
