Schneider TSXDEY16D2  Discrete Input Module

Schneider TSXDEY16D2 Dispersed Quantity Input Module

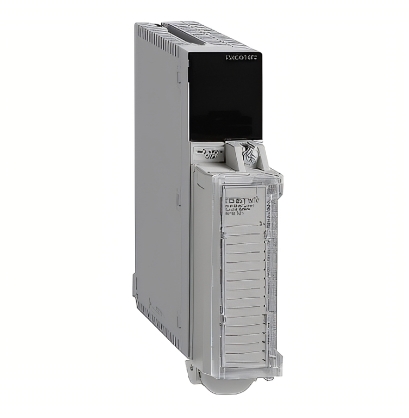

The Schneider TSXDEY16D2 is a discrete input module for the Modicon Premium automation platform. It essentially handles digital signals from sensors or switches and translates them into usable data for the PLC.

Technical specifcations for TSXDEY16D2

Dimensions: 26 cm x 18 cm x 5.5 cm

Weight: 0.4 kg

Main

Range of Product: Modicon Premium Automation platform

Product or Component Type: Discrete input module

Discrete input number: 16 current sink isolated EN/IEC 61131-2 type 2

Discrete input voltage: 24 V DC positive

Sensor power supply: 19…30 V

Input compatibility: With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2

Discrete input current: 7 mA

Complementary

Voltage state 1 guaranteed>= 11 V

Current state 1 guaranteed>= 6.5 mA

Voltage state 0 guaranteed<= 5 V

Current state 0 guaranteed<= 2 mA

Input impedance4000 Ohm at state 1

Response Time:

4 ms

<= 7 ms

isalotion resistance: < 10 MOhm 500 V DC

Power dissipation: (1 W + 0.15 W x No of channels used)

Electrical Connection: Screw terminal

Marking: CE

Current consumption:

135 mA 24 V DC

80 mA 5 V DC

Module format: Standard

Net Weight0: 7 lb(US) (0.3 kg)

Environment

Dielectric strength: 1500 V AC 50/60 Hz

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Relative Humidity:

10…95 % without condensation for operation

5…95 % without condensation for storage

Operating altitude: 0...6561.68 ft (0...2000 m)

protective treatment: TC

IP Degree of Protection: IP20

Pollution degree: 2
