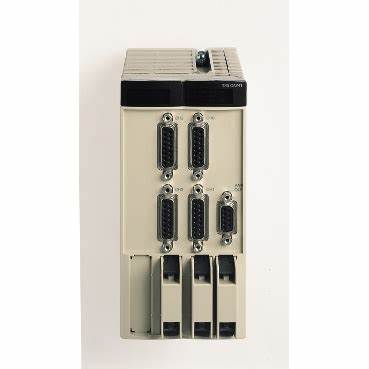

Schneider TSXCAY41C motion control modules - for servomotors - 8 ms..10 s - 4 axes
Specifications
| Main | |
| Range of Product | Modicon Premium Automation platform |
| Product or Component Type | Motion control modules |
| Product Specific Application | For servo motors |
| Servo loop type | Proportional to overshoot compensation and gain switching 4 ms |
| Checks | Presence of voltage/sensor feedback counter input |
| Consistency of commands | |
| Encoder coupling, servo drive present, emergency stop | |
| Proper execution of movement | |
| Sensor power supply | |
| Validity of parameters | |
| Complementary | |
| Speed profile path | Trapezoidal or parabolic |
| Resolution | >= 0.5 position units per point |
| <= 1000 position units per point | |
| Length of axis | 32000…32000000 P |
| Acquisition speed | >= 54000 points/mn |
| <= 270000 points/mn | |
| Acceleration time | 8 ms...10 s |
| Operating Mode | Direct drive mode |
| FOLLOWER | |
| OFF | |
| Automatic | |
| Manual | |
| Type of axis | Following axis static ratio |
| Limited axis | |
| I/O modularity | 4 axes |
| Input compatibility | Absolute encoder SSI output 16...25 bits |
| Incremental encoder 10...30 V totem pole | |
| Incremental encoder 5 V DC RS422 | |
| With 2-wire/3-wire sensor (24 DC) auxiliary input | |
| Absolute encoder parallel output ABE7CPA11 | |
| Clock frequency | 200 kHz SSI absolute encoder |
| Incremental encoder frequency x1 | 500 kHz |
| Incremental encoder frequency x 4 | 1000 kHz in counting |
| 250 kHz in input | |
| Power dissipation in W | 10…17 W |
| Input type | Current sink auxiliary input EN/IEC 1131 Type 2 |
| Resistive servo drive control input EN/IEC 1131 Type 1 | |
| Resistive counter input | |
| Input logic | Positive |
| Input voltage | 24 V 8 mA auxiliary input |
| 24 V 8 mA servo drive control input | |
| 5 V 18 mA counter input | |
| Input voltage limits | <= 5.5 V counter input |
| 19...30 V auxiliary input | |
| 19...30 V servo drive control input | |
| Voltage state 1 guaranteed | >= 11 V auxiliary input |
| >= 11 V servo drive control input | |
| >= 2.4 V counter input | |
| Current state 1 guaranteed | >= 3.5 mA servo drive control input) |
| >= 3.7 mA counter input) | |
| >= 6 mA auxiliary input) | |
| Voltage state 0 guaranteed | <= 1.2 V counter input |
| <= 5 V auxiliary input | |
| <= 5 V servo drive control input | |
| Current state 0 guaranteed | <= 1 mA counter input) |
| <= 1.5 mA servo drive control input) | |
| <= 2 mA auxiliary input) | |
| Input impedance | 270 Ohm counter input |
| 3000 Ohm auxiliary input | |
| 3000 Ohm servo drive control input | |
| Number of outputs | 4 reflex output static EN/IEC 61131 |
| 4 analogue output static | |
| 4 servo drive validation output relay | |
| Analogue output range | +/- 10...24 V |
| Analogue output resolution | 13 bits + sign |
| LSB value | 1.25 mV analogue output |
| Output voltage | 24 V DC reflex output: |
| 24 V DC servo drive validation output: | |
| Output voltage limits | Reflex output 19...30 V |
| Servo drive validation output 5...30 V | |
| Nominal output current | 0.5 A reflex output |
| Maximum output current | 1.5 mA analogue output |
| 200 mA servo drive validation output | |
| 625 mA reflex output | |
| Minimum load | 1 mA 1 V |
| Maximum voltage drop | <1 V at state on reflex output |
| Maximum leakage current | 0.3 mA reflex output |
| Switching time | < 5 ms for servo drive validation |
| < 500 µs for reflex output | |
| Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) reflex |
| Short-circuit protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overload protection | Current limiter reflex output |
| Thermal tripping reflex output | |
| Output overvoltage protection | Zener diode between outputs and 24 DC reflex output |
| Reverse polarity protection | Reflex output reverse diode on supply |
| Local signalling | for module operating (RUN) 1 LED (green) |
| for external fault (I/O) 1 LED (red) | |
| for internal fault, module failure (ERR) 1 LED (red) | |
| for axis diagnostics available 4 LEDs (green) | |
| Electrical connection | 1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs |
| 3 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply | |
| 1 connector SUB-D 9 for an analogue output (speed reference) | |
| 4 connectors SUB-D 15 for an incremental or absolute encoder | |
| Current consumption | 22...40 mA 24 V DC on 10/30 V absolute encoder module |
| 1500 mA 5 V DC | |
| 30 mA 24 V DC | |
| Module format | Double |
| Net Weight | 1.34 lb(US) (0.61 kg) |
| Environment | |
| protective treatment | Conformal coating Humiseal 1A33 |
| TC | |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 5…95 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Ordering and shipping details | |
| Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
| Discount Schedule | PC22 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.7 in (9.5 cm) |
| Package 1 Width | 7.09 in (18.0 cm) |
| Package 1 Length | 10.2 in (26.0 cm) |
| Package 1 Weight | 31.2 oz (884.0 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 11.8 in (30 cm) |
| Package 2 Width | 11.8 in (30 cm) |
| Package 2 Length | 15.7 in (40 cm) |
| Package 2 Weight | 8.931 lb(US) (4.051 kg) |
| Contractual warranty | |
| Warranty | 18 months |
