TSXCAY33C

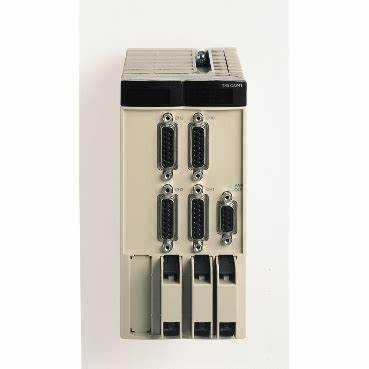

Schneider TSXCAY33C motion control modules

Schneider TSXCAY33C motion control modules

  • Item no.:

    TSXCAY33C
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    FRANCE
  • Color:

    New sealed
  • Goods stock:

    10
  • Lead Time:

    In stock/1-3days

Schneider TSXCAY33C motion control modules

for servomotors - 8 ms..10 s - 3 axes





Specifications

Main
Range of Product Modicon Premium Automation platform
Product or Component Type Motion control modules
Product Specific Application For servo motors
Servo loop type Proportional to overshoot compensation and gain switching 4 ms
Checks Presence of voltage/sensor feedback counter input
Consistency of commands
Encoder coupling, servo drive present, emergency stop
Proper execution of movement
Sensor power supply
Validity of parameters
Complementary
Speed profile path Trapezoidal or parabolic
Resolution <= 1000 position units per point
>= 0.5 position units per point
Length of axis 256…32000000 P
Acquisition speed >= 54000 points/mn
<= 270000 points/mn
Acceleration time 8 ms...10 s
Operating Mode Automatic
FOLLOWER
OFF
Manual
Direct drive mode
Type of axis Limited axis
2/3 axis linear interpolation
I/O modularity 3 axes
Input compatibility Incremental encoder 10...30 V totem pole
Incremental encoder 5 V DC RS422
With 2-wire/3-wire sensor (24 DC) auxiliary input
Absolute encoder parallel output ABE7CPA11
Absolute encoder SSI output 12...25 bits
Clock frequency 200 kHz SSI absolute encoder
Incremental encoder frequency x1 500 kHz
Incremental encoder frequency x 4 1000 kHz in counting
250 kHz in input
Power dissipation in W 10…17 W
Input type Current sink auxiliary input EN/IEC 1131 Type 2
Resistive servo drive control input EN/IEC 1131 Type 1
Resistive counter input
Input logic Positive
Input voltage 24 V 8 mA auxiliary input
24 V 8 mA servo drive control input
5 V 18 mA counter input
Input voltage limits <= 5.5 V counter input
19...30 V auxiliary input
19...30 V servo drive control input
Voltage state 1 guaranteed >= 11 V auxiliary input
>= 11 V servo drive control input
>= 2.4 V counter input
Current state 1 guaranteed >= 3.5 mA servo drive control input)
>= 3.7 mA counter input)
>= 6 mA auxiliary input)
Voltage state 0 guaranteed <= 1.2 V counter input
<= 5 V auxiliary input
<= 5 V servo drive control input
Current state 0 guaranteed <= 1 mA counter input)
<= 1.5 mA servo drive control input)
<= 2 mA auxiliary input)
Input impedance 270 Ohm counter input
3000 Ohm auxiliary input
3000 Ohm servo drive control input
Number of outputs 3 reflex output static EN/IEC 61131
3 analogue output static
3 servo drive validation output relay
Analogue output range +/- 10...24 V
Analogue output resolution 13 bits + sign
LSB value 1.25 mV analogue output
Output voltage 24 V DC reflex output:
24 V DC servo drive validation output:
Output voltage limits Reflex output 19...30 V
Servo drive validation output 5...30 V
Nominal output current 0.5 A reflex output
Maximum output current 1.5 mA analogue output
200 mA servo drive validation output
625 mA reflex output
Minimum load 1 mA 1 V
Maximum voltage drop <1 V at state on reflex output
Maximum leakage current 0.3 mA reflex output
Switching time < 5 ms for servo drive validation
< 500 µs for reflex output
Output compatibility Positive logic DC inputs (resistance <= 15 kOhm) reflex
Short-circuit protection Current limiter reflex output
Thermal tripping reflex output
Output overload protection Current limiter reflex output
Thermal tripping reflex output
Output overvoltage protection Zener diode between outputs and 24 DC reflex output
Reverse polarity protection Reflex output reverse diode on supply
Local signalling for module operating (RUN) 1 LED (green)
for external fault (I/O) 1 LED (red)
for internal fault, module failure (ERR) 1 LED (red)
for axis diagnostics available 3 LEDs (green)
Electrical connection 1 connector HE-10 20 pins for servo drive ctrl inputs + for ext power supply of servo drive inputs/outputs
2 connectors HE-10 20 pins for aux inputs, reflex output, for external sensor and preactuator power supply
1 connector SUB-D 9 for an analogue output (speed reference)
3 connectors SUB-D 15 for an incremental or absolute encoder
Current consumption 22...40 mA 24 V DC on 10/30 V absolute encoder module
1500 mA 5 V DC
30 mA 24 V DC
Module format Double
Net Weight 1.34 lb(US) (0.61 kg)
Environment
protective treatment TC
Conformal coating Humiseal 1A33
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Relative Humidity 5…95 % without condensation
Operating altitude <= 6561.68 ft (2000 m)
Ordering and shipping details
Category 22558-TSX PREMIUM, ATRIUM & PL7 PRO
Discount Schedule PC22
GTIN 3.59586E+12
Returnability No
Country of origin FR
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 3.7 in (9.5 cm)
Package 1 Width 7.09 in (18.0 cm)
Package 1 Length 10.2 in (26.0 cm)
Package 1 Weight 30.5 oz (866.0 g)
Unit Type of Package 2 S03
Number of Units in Package 2 4
Package 2 Height 11.8 in (30 cm)
Package 2 Width 11.8 in (30 cm)
Package 2 Length 15.7 in (40 cm)
Package 2 Weight 8.772 lb(US) (3.979 kg)
Contractual warranty
Warranty 18 months
