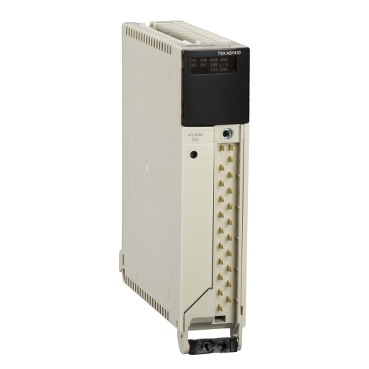

Schneider TSXASY410 Analog output module
Modicon Premium, 4 outputs, 12 bits coversion, 900mA at 5VDC
Specifications
Main | |
Range of Product | Modicon Premium Automation platform |
Product or Component Type | Analog output module |
Analogue output number | 4 |
Analogue output type | Current 0...20 mA |
Current 4...20 mA | |
Voltage +/- 10 V | |
Analog/digital conversion | 11 bits + sign |
Complementary | |
Conversion time | 2.5 ms |
Measurement resolution | 10.25 µA 0...20 mA |
10.25 µA 4...20 mA | |
5.12 mV +/- 10 V | |
Electrical Connection | Screw terminal block |
Measurement error | 0.45 % of full scale +/- 10 V 25 °C |
0.52 % of full scale 0...20 mA 25 °C | |
0.52 % of full scale 4...20 mA 25 °C | |
0.75 % of full scale +/- 10 V 0...60 °C | |
0.98 % of full scale 0...20 mA 0...60 °C | |
0.98 % of full scale 4...20 mA 0...60 °C | |
Isolation between channels | 1500 Vrms |
Isolation between channels and bus | 1500 Vrms |
Isolation between channels and ground | 500 V |
Protection Type | Overload protection |
Short-circuit protection | |
Output voltage limits | <= 30 V |
Load impedance ohmic | < 600 Ohm 0...20 mA |
< 600 Ohm 4...20 mA | |
> 1000 Ohm +/- 10 V | |
Maximum load inductance | 300 µH |
Maximum load capacitance | 0.1 µF |
Marking | CE |
Current consumption | 900 mA 5 V DC |
Module format | Standard |
Terminals description PLC n°1 | (14)OUT_ANA_SHIELD# |
(19)OUT_ANA_SHIELD# | |
(18)OUT_ANA_CUR#3 | |
(1)OUT_ANA_VOLT#0 | |
(5)OUT_ANA_SHIELD# | |
(16)OUT_ANA_VOLT#3 | |
(15)OUT_ANA_SHIELD# | |
(11)OUT_ANA_VOLT#2 | |
(12)OUT_ANA_COM#2 | |
(20)OUT_ANA_SHIELD# | |
(6)OUT_ANA_VOLT#1 | |
(7)OUT_ANA_COM#1 | |
(2)OUT_ANA_COM#0 | |
(13)OUT_ANA_CUR#2 | |
(4)OUT_ANA_SHIELD# | |
(8)OUT_ANA_CUR#1 | |
(9)OUT_ANA_SHIELD# | |
(3)OUT_ANA_CUR#0 | |
(17)OUT_ANA_COM#3 | |
(10)OUT_ANA_SHIELD# | |
Net Weight | 0.77 lb(US) (0.35 kg) |
Environment | |
Standards | CSA C22.2 No 213 Class I Division 2 Group B |
CSA C22.2 No 213 Class I Division 2 Group C | |
CSA C22.2 No 142 | |
92/31/EEC | |
89/336/EEC | |
CSA C22.2 No 213 Class I Division 2 Group A | |
93/68/EEC | |
IEC 61131-2 | |
73/23/EEC | |
CSA C22.2 No 213 Class I Division 2 Group D | |
UL 508 | |
Product Certifications | GL |
ABS | |
RINA | |
DNV | |
RMRS | |
LR | |
BV | |
Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 10…95 % without condensation for operation |
5…95 % without condensation for storage | |
Operating altitude | 0...6561.68 ft (0...2000 m) |
protective treatment | TC |
IP Degree of Protection | IP20 |
Pollution degree | 2 |
Ordering and shipping details | |
Category | 22558-TSX PREMIUM, ATRIUM & PL7 PRO |
Discount Schedule | PC22 |
GTIN | 3.38911E+12 |
Returnability | No |
Country of origin | FR |
Packing Units | |
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Height | 2.2 in (5.5 cm) |
Package 1 Width | 7.09 in (18.0 cm) |
Package 1 Length | 10.2 in (26.0 cm) |
Package 1 Weight | 16.0 oz (453.0 g) |
Contractual warranty | |
Warranty | 18 months |
