TSX3721100

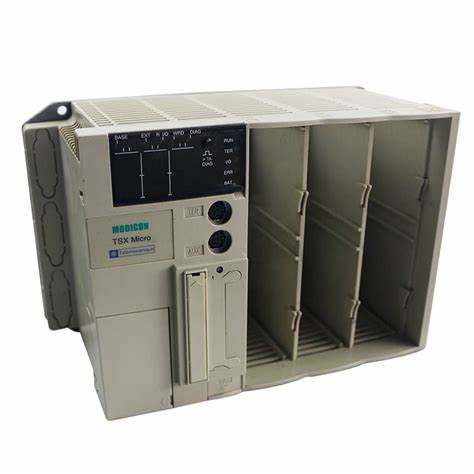

Schneider TSX3721100 Modular base controller

Schneider TSX3721100 Modular base controller

  • Item no.:

    TSX3721100
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    FRANCE
  • Color:

    New sealed
  • Goods stock:

    10
  • Lead Time:

    In stock/1-3days

Schneider TSX3721100 Modular base controller

Modicon TSX Micro, UNI-TELWAY, 16W secondary power, 19.2kbit/s





Specifications

Main
Range of Product Modicon TSX Micro automation platform
Product or Component Type Modular base controller
Primary voltage 24 V 19.2…30 V DC
Input current 2 mA 60 A
Immunity to microbreaks 10 ms
Complementary
Number of slots 3
Integrated connection type 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock With
Memory description Flash 15 Kwords data
Internal RAM 20 Kwords data
Internal RAM (with PCMCIA card) 128 Kwords program and data
Internal RAM 128 Kwords data storage
Maximum size of object areas 128 %KWi constant words
1 %MWi internal words
256 %Mi
Execution time per instruction 0.13 µs Boolean without PCMCIA card
4.5 µs arithmetic REAL floating without PCMCIA card
0.19 µs Boolean with PCMCIA card
4.5 µs arithmetic REAL floating with PCMCIA card
Execution time for 1 Kinstruction 5.88 100 % Boolean without PCMCIA card
0.27 65 % Boolean and 35 % numerical without PCMCIA card
4 100 % Boolean with PCMCIA card
0.266 65 % Boolean and 35 % numerical with PCMCIA card
Application structure 1 fast task
16 event tasks
1 master task
System overhead 1.6 ms master task
Protection Type Short-circuit
Overload protection
Total useful secondary power 16 W
Electromagnetic compatibility Electrostatic discharge IEC 1000-4-2 level 3
Electromagnetic field immunity test IEC 1000-4-3 level 3
Resistance to fast transient IEC 1000-4-4 level 3
Immunity to impulse waves IEC 1000-4-5
Damped oscillatory wave IEC 1000-4-12
Immunity to electromagnetic interference IEC 61131-2
Environment
Ambient Air Temperature for Operation 32…140 °F (0…60 °C)
Ambient Air Temperature for Storage -13…158 °F (-25…70 °C)
Relative Humidity 5…95 % without condensation for operation
Operating altitude 0...6561.68 ft (0...2000 m)
Width 13.4 in (341.4 mm)
Height 5.9 in (151 mm)
Depth 6.0 in (152 mm)
Net Weight 3.79 lb(US) (1.72 kg)
Ordering and shipping details
Category US1PC1422556
Discount Schedule PC14
GTIN 3.38911E+12
Returnability No
Country of origin US
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 5.9 in (15.0 cm)
Package 1 Width 6.7 in (17.0 cm)
Package 1 Length 9.4 in (24.0 cm)
Package 1 Weight 3.834 lb(US) (1.739 kg)
Contractual warranty
Warranty 18 months
