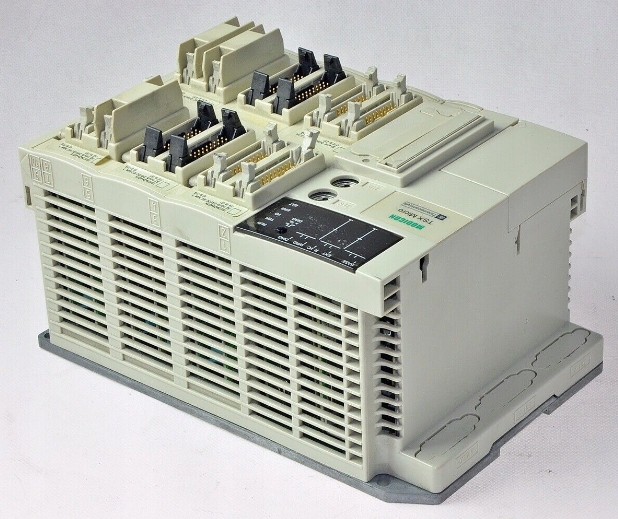

Schneider TSX3721001 Modular Base Controller

Schneider TSX3721001  Micro PLC Modular Base Controller Modular base controller

The Schneider TSXP47455, Modular base controller, Modicon TSX Micro, UNI-TELWAY, 0.5A, 19.2kbit/s

Technical specifcations for TSX3721001

Main

Range of Product: Modicon TSX Micro automation platform

Product or Component Type: Modular base controller

Primary voltage:100...240 V 90…264 V AC

Input current: 2 mA 60 A

Immunity to microbreaks: 20 ms

Output Current: 0.5 A

Complementary

Number of slots: 3

Integrated connection type:

1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s

1 Modbus Modbus RTU 19.2 kbit/s

Realtime clock: With

Memory description:

Flash 15 Kwords data

Internal RAM 20 Kwords data

Internal RAM (with PCMCIA card) 128 Kwords program and data

Internal RAM 128 Kwords data storage

Maximum size of object areas:

128 %KWi constant words

256 %Mi

1 %MWi internal words

Execution time per instruction:

0.13 µs Boolean without PCMCIA card

4.5 µs arithmetic REAL floating without PCMCIA card

0.19 µs Boolean with PCMCIA card

4.5 µs arithmetic REAL floating with PCMCIA card

Execution time for 1 Kinstruction:

5.88 100 % Boolean without PCMCIA card

0.27 65 % Boolean and 35 % numerical without PCMCIA card

4 100 % Boolean with PCMCIA card

0.266 65 % Boolean and 35 % numerical with PCMCIA card

Application structure:

16 event tasks

1 master task

1 fast task

System overhead: 1.6 ms master task

Protection Type:

Overload protection

Short-circuit

Total useful secondary power: 16 W

Electromagnetic compatibility:

Electrostatic discharge IEC 1000-4-2 level 3

Electromagnetic field immunity test IEC 1000-4-3 level 3

Resistance to fast transient IEC 1000-4-4 level 3

Immunity to impulse waves IEC 1000-4-5

Damped oscillatory wave IEC 1000-4-12

Immunity to electromagnetic interference IEC 61131-2

Environment

Ambient Air Temperature for Operation: 32…140 °F (0…60 °C)

Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)

Relative Humidity:

10…95 % without condensation for operation

5…95 % without condensation for operation

Operating altitude: 0...6561.68 ft (0...2000 m)

Width: 13.4 in (341.4 mm)

Height: 5.9 in (151 mm)

Depth: 6.0 in (152 mm)

Net Weight: 3.79 lb(US) (1.72 kg)
