TSX3710028DR1

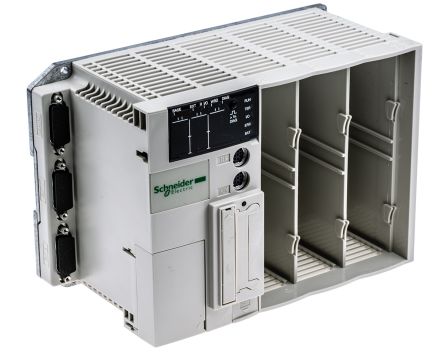

Schneider TSX3710028DR1 Modular base controller

Schneider TSX3710028DR1 Modular base controller

  • Item no.:

    TSX3710028DR1
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    FRANCE
  • Color:

    New sealed
  • Goods stock:

    10
  • Lead Time:

    In stock/1-3days

Schneider TSX3710028DR1 Modular base controller

Modicon TSX Micro, UNI-TELWAY, 0.5A, 16 discrete inputs





Specifications

Main
Range of product Modicon TSX Micro automation platform
Product or component type Modular base controller
Primary voltage 100...240 V 90…264 V AC
Input current 2 mA 60 A
Immunity to microbreaks 20 ms
Output current 0.5 A
Complementary
Number of slots 2
Module type Screw terminal discrete I/O
Discrete input number 16 discrete input(s) at 24 V for AC
Discrete output number 12 for relay
Integrated connection type 1 serial link Uni-Telway 19.2 kbit/s
1 Modbus Modbus RTU 19.2 kbit/s
Realtime clock With
Memory description Internal RAM 14 Kwords data
Flash 15 Kwords data
Maximum size of object areas 256 %Mi
1 %MWi internal words
128 %KWi constant words
Execution time per instruction 0.25 µs Boolean without PCMCIA card
4.81 µs arithmetic REAL floating without PCMCIA card
Execution time for 1 Kinstruction 3.03 100 % Boolean without PCMCIA card
0.25 65 % Boolean and 35 % numerical without PCMCIA card
Application structure 1 master task
8 event tasks
1 fast task
System overhead 1.9 ms for master task
Protection type Short-circuit
Overload protection
Network frequency 50...60 Hz
Total useful secondary power 24 W
Electromagnetic compatibility Electrostatic discharge conforming to IEC 1000-4-2 level 3
Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3
Resistance to fast transient conforming to IEC 1000-4-4 level 3
Immunity to impulse waves conforming to IEC 1000-4-5
Damped oscillatory wave conforming to IEC 1000-4-12
Immunity to electromagnetic interference conforming to IEC 61131-2
Environment
Ambient air temperature for operation 0…60 °C
Ambient air temperature for storage -25…70 °C
Relative humidity 10…95 % without condensation for operation
5…95 % without condensation for operation
Operating altitude 0...2000 m
Width 282.7 mm
Height 151 mm
Depth 152 mm
Net weight 1.91 kg
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.500 cm
Package 1 Width 16.500 cm
Package 1 Length 18.000 cm
Package 1 Weight 1.939 kg
Unit Type of Package 2 S04
Number of Units in Package 2 6
Package 2 Height 30.000 cm
Package 2 Width 40.000 cm
Package 2 Length 60.000 cm
Package 2 Weight 12.360 kg
Contractual warranty
Warranty 18 months
