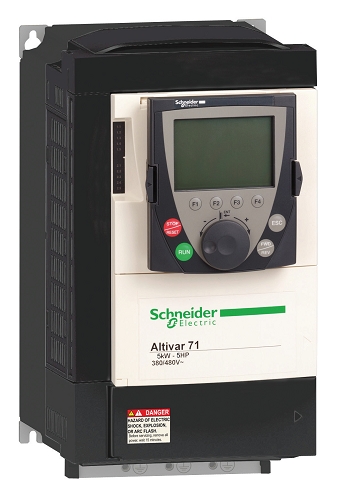

SCHNEIDER ATV71HD30N4 variable speed drive ATV71
The Altivar 71 drive has been designed to generate significant energy savings in industrial processes, by offering options that can reduce line interference (DC chokes, line chokes, passive filters, Active Front End (AFE), etc.). It has been designed as an eco-friendly product (using 90 % recyclable materials, compliant with environmental standard ISO 14040). It is RoHS-compliant. Compliance with international standards and certifications The entire range conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-2, IEC/EN 61800-3, is UL, CSA, DNV, C-Tick, NOM 117 and GOST certified, and has been developed to meet the requirements of directives regarding the protection of the environment (RoHS, WEEE, etc.) as well as those of European Directives (e mark).
The Altivar 71 drive features a Power Removal safety function that is designed to help ensure motor stopping and help prevent accidental restarts. This safety function means that the drive can be installed as part of the safety system for an Electrical/ Electronic/Programmable Electronic control system relating to the safety of a machine or industrial process. It meets the requirements of category 3 of the ISO 1384 machine safety standard, SIL 2 of IEC/EN 61508 and standard IEC/EN 61800-5-2 which covers the functional safety requirements of power drive products. The Power Removal safety function also enables the Altivar 71 drive to offer protection for motors installed in explosive atmospheres (ATEX certification).
Specifications:
Manufacturer : SCHNEIDER
Product No. : ATV71HD30N4
Type : AC Drives
Range of product :
- Altivar 71
- 200 m unshielded cable
- 66 A for 380 V 3 phases 30 kW / 40 hp
- 66 A at 4 kHz 380 V 3 phases 30 kW / 40 hp
- 99 A for 60 s 3 phases 30 kW / 40 hp
- 4...16 kHz with derating factor
- Voltage/frequency ratio (2 or 5 points)
Product or component type : Variable speed drive
Product specific application : Complex, high-power machines
Component name : ATV71
Motor power kW : 30 kW, 3 phases at 380...480 V
Motor power hp : 40 hp, 3 phases at 380...480 V
Maximum motor cable length : 100 m shielded cable
Power supply voltage : 380...480 V - 15...10 %
Network number of phases : 3 phases
Line current : 56 A for 480 V 3 phases 30 kW / 40 hp
EMC filter : Integrated
Assembly style : With heat sink
Apparent power : 43.4 kVA at 380 V 3 phases 30 kW / 40 hp
Prospective line Isc : 22 kA for 3 phases
Nominal output current : 52 A at 4 kHz 460 V 3 phases 30 kW / 40 hp
Maximum transient current : 109 A for 2 s 3 phases 30 kW / 40 hp
Output frequency : 0.1…599 Hz
Nominal switching frequency : 4 kHz
Switching frequency : 1...16 kHz adjustable
Asynchronous motor control profile : Sensorless flux vector control (SFVC) (voltage or current vector)
Type of polarization : No impedance for Modbus
