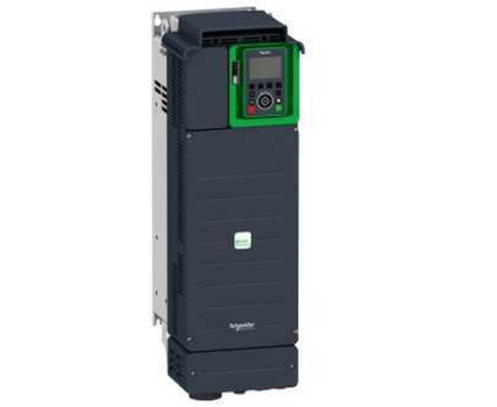

Schneider PLC ATV630D15N4 Variable speed drive
variable speed drive
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 11kW / 15hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 7.5kW / 10hp for applications requiring significant overload (up to 150%). It weighs 7.7kg and its dimensions are, 171mm wide, 409mm high, 233mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modu
Product availability: Stock - Normally stocked in distribution facility
Embedded power measurement and energy dashboard
Embedded process monitoring and control
Stop and Go function to reduce energy consumption
Asset monitoring and protection
Drift monitoring
Environmental performance of the product Learn more
Specifications
Range of Product：Altivar Process ATV600
Product or Component Type：Variable speed drive
Product Specific Application：Process and utilities
Device short name：ATV630
ATV630：Standard version
product destination： Asynchronous motor Synchronous motors
EMC filter:Integrated 164.04 ft (50 m) IEC 61800-3 category C2 Integrated 492.1 ft (150 m) IEC 61800-3 category C3
IP degree of protection:IP21IEC 61800-5-1 IP21IEC 60529
[Us] rated supply voltage :380...480 V
Degree of protection : UL type 1 UL 508C
Type of cooling:Forced convection
Supply frequency:50...60 Hz - 5...5 %
[Us] rated supply voltage:380...480 V - 15...10 %
Motor power kW:11 kW normal duty) 7.5 kW heavy duty)
Company Service:
1. Fast delivery (1-3 days will ship out for in-stock products)
2. Rich experience (More than 10 years of sales experience)
3. Large inventory ( Various brands and overseas warehouse)
4. Quality insurance ( Clear products condition with 1-year warranty)
PACKAGING&DELIVERY:
Packaging details: original packing with factory seal
Delivery details: 1~3 days after payment
