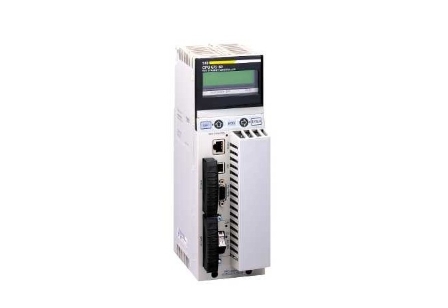

Schneider 140CPU67260 Modicon TSX Quantum CPU

Schneider 140CPU67260 Unity Hot Standby Processor With Multimode Ethernet

Schneider Electric 140CPU67260 Unity HSBY CPU 67260 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)

Technical specifcations for 140CPU67260

Dimensions: 32.5 cm x 18.5 cm x 11 cm

Weight: 1.4 kg

Description: Schneider Electric 140CPU67260 Unity HSBY CPU 67260

Main

Range of Product: Modicon Quantum automation platform

Product or Component Type: Unity processor

Complementary

Mode of Transmission: Multi mode

Clock frequency: 266 MHz

Number of slots: 10; 16; 4; 6; 2

Number of racks: 2 - local

Number of distributed I/O station: 63 1 3 Modbus Plus

Number of remote I/O station:

31 - 2 S908 remote I/O

31 - 2 ethernet Quantum remote I/O

31 - 2 ethernet X80 remote I/O

Discrete I/O number:

31744 inputs, 31744 outputs - remote

8000 inputs, 8000 outputs - distributed - per network Modbus Plus

Unlimited (31 drops of 28 slots max) - ethernet remote I/O

0 - local - forbidden in Hot Standby application

Analogue I/O number:

500 inputs, 500 outputs - distributed - per network Modbus Plus

Unlimited (31 drops of 28 slots max) - ethernet remote I/O

1984 inputs,1984 outputs - remote

0 - local - forbidden in Hot Standby application

Application specific I/O:

Accurate time stamping

Counter

Serial link

High-speed interrupt inputs

communication service: Ethernet router

Number of optional modules: 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Maximum number of connections:

1 USB

2 AS-Interface - distributed

4 AS-Interface - remote

6 Ethernet TCP/IP - local

6 Modbus Plus - local

6 Profibus DP - local

1 Modbus RS232/485 Modbus/ASCII)

Integrated connection type:

1 Modbus Plus

1 Modbus

1 USB

1 optic fibre Hot Standby

Checks: Process control; Hot standby

Memory description:

Expandable 7168 kB - program with PCMCIA card

Expandable 8 MB - file storage with PCMCIA card

Internal RAM 3072 kB - 1536 kB for data

Switch Function: Key switch memory port on/off

Application structure:

1 periodic fast task - forbidden in Hot Standby application

128 I/O interrupt tasks - forbidden in Hot Standby application

128 interrupt tasks - forbidden in Hot Standby application

32 timer interrupt tasks - forbidden in Hot Standby application

4 auxiliary tasks - forbidden in Hot Standby application

1 cyclic/periodic master task -

Number of instructions per ms:

10.28 Kinst/ms 100 % Boolean

10.07 Kinst/ms 65 % Boolean and 35 % numerical

System overhead: 0.2 ms fast task; 1 ms master task

Bus current requirement: 2760 mA

Local signalling:

for Ethernet activity (COM) 1 LED (yellow)

for configuration status (STS) 1 LED (yellow)

Electrical connection:

1 female connector SUB-D 9 for connecting to the Modbus Plus network

1 connector RJ45 for connecting Modbus bus

1 connector MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km
