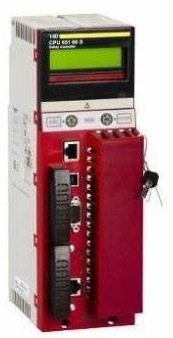

Schneider 140CPU67160S Unity safety processor
Unity safety processor, Modicon Quantum automation platform, Pro XL, 1024kB RAM, 266MHz
Specifications
| Main | |
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Unity safety processor |
| Software Designation | Unity Pro XL safety |
| Backup type | Lithium battery 990XCP98000 |
| Complementary | |
| Clock frequency | 266 MHz |
| Number of slots | 10 |
| 2 | |
| 16 | |
| 6 | |
| 3 | |
| 4 | |
| Number of racks | 1 - local |
| Number of remote I/O station | 31 - 1 remote |
| Discrete I/O number | Unlimited (13 slots max) - local - forbidden in Hot Standby application |
| 31744 inputs, 31744 outputs - remote | |
| Analogue I/O number | Unlimited (26 slots max) - local - forbidden in Hot Standby application |
| 1984 inputs,1984 outputs - remote | |
| Number of optional modules | 6 Ethernet 140NOE77111 |
| Maximum number of connections | 1 Modbus Plus - local |
| 1 Modbus RS232/485 Modbus/ASCII) | |
| 1 | |
| 1 Ethernet TCP/IP - local | |
| 6 USB - local | |
| Integrated connection type | 1 Modbus local |
| 1 Modbus Plus local | |
| 1 USB local | |
| 1 Ethernet TCP/IP Hot Standby 140NOE77111 local | |
| Checks | Process control |
| Hot standby | |
| Memory description | Expandable 7168 kB - program with PCMCIA card |
| Expandable 8 MB - file storage with PCMCIA card | |
| Internal RAM 1024 kB - 512 kB for data | |
| Switch Function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task |
| Execution time per instruction | 0.09...0.12 µs on word |
| 0.105...0.15 µs Boolean | |
| 0.96...1.02 µs on fixed-point arithmetic | |
| Execution time for 1 Kinstruction | 5.03 65 % Boolean and 35 % numerical |
| 5.14 100 % Boolean | |
| System overhead | 1.5 ms master task |
| Bus current requirement | 2500 mA |
| Maximum supply current | 90 A 140.0000000000 °F (60 °C) lithium battery |
| 60 µA lithium battery | |
| [Us] rated supply voltage | 3 V DC lithium battery |
| Battery Capacity | 1200 Ah |
| Battery life | 10 year(s) |
| Display type | LCD 2 lines of 16 characters |
| Local signalling | for Ethernet activity (COM) 1 LED (green) |
| for Ethernet collision (ERR) 1 LED (red) | |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network |
| 1 female connector USB type B for connecting to PC | |
| 2 connectors RJ45 for connecting Modbus bus | |
| Marking | CE |
| Environment | |
| Product Certifications | TÜV Rheinland (SIL3) |
| C-tick | |
| CSA | |
| Ordering and shipping details | |
| Category | US1PC2118151 |
| Discount Schedule | PC21 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.3 in (11.0 cm) |
| Package 1 Width | 7.5 in (19.0 cm) |
| Package 1 Length | 12.8 in (32.5 cm) |
| Package 1 Weight | 3.067 lb(US) (1.391 kg) |
| Contractual warranty | |
| Warranty | 18 months |
