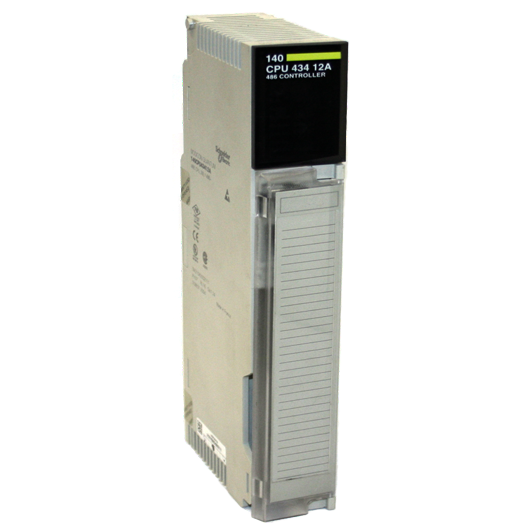

Schneider 140CPU43412U - Unity processor
Unity processor Modicon Quantum - 1056 kB - 66 MHz
Specifications
| Main | |
| Range of Product | Modicon Quantum automation platform |
| Product or Component Type | Unity processor |
| Complementary | |
| Clock frequency | 66 MHz |
| Number of slots | 2 |
| 4 | |
| 10 | |
| 16 | |
| 6 | |
| Number of racks | 2 - local |
| Number of distributed I/O station | 63 1 3 Modbus Plus |
| Number of remote I/O station | 31 - 2 S908 remote I/O |
| 0 - 0 ethernet remote I/O | |
| Discrete I/O number | 31744 inputs, 31744 outputs - remote |
| 8000 inputs, 8000 outputs - distributed - per network Modbus Plus | |
| Unlimited (26 slots max) - local | |
| Analogue I/O number | 500 inputs, 500 outputs - distributed - per network Modbus Plus |
| 1984 inputs,1984 outputs - S908 remote I/O | |
| Unlimited (26 slots max) - local | |
| Application specific I/O | Serial link |
| Counter | |
| High-speed interrupt inputs | |
| Accurate time stamping | |
| Number of optional modules | 6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Maximum number of connections | 2 AS-Interface - distributed |
| 2 Modbus RS232/485 Modbus/ASCII) | |
| 4 AS-Interface - remote | |
| 6 Ethernet TCP/IP - local | |
| 6 Modbus Plus - local | |
| 6 Profibus DP - local | |
| Integrated connection type | 1 Modbus Plus |
| 2 Modbus | |
| Checks | Process control |
| Memory description | Internal RAM 1056 kB |
| Switch Function | Key switch memory start/stop memory protection |
| Slide switch communication port : ASCII/RTU/Memory | |
| Application structure | 1 cyclic/periodic master task - |
| 1 periodic fast task - | |
| 16 timer interrupt tasks - | |
| 64 I/O interrupt tasks - | |
| 64 interrupt tasks - | |
| No auxiliary task - | |
| Execution time per instruction | 0.1...0.27 µs floating points |
| 0.1...0.27 µs on fixed-point arithmetic | |
| 0.12...0.585 µs Boolean | |
| 0.12...0.585 µs on word | |
| Number of instructions per ms | 1.86 Kinst/ms 100 % Boolean |
| 2.49 Kinst/ms 65 % Boolean and 35 % numerical | |
| System overhead | 0.2 ms fast task |
| 1 ms master task | |
| Bus current requirement | 1800 mA |
| Local signalling | for communications are active on the Modbus Plus port (Modbus Plus) 1 LED (green) |
| for communications are active on the Modbus port (Modbus) 1 LED (green) | |
| for CPU has been started and is solving logic (RUN) 1 LED (green) | |
| for CPU has passed the power-up diagnostic tests (READY) 1 LED (green) | |
| for write-protected memory (memory port) 1 LED (orange) | |
| for battery needs replacing or is not present (BAT LOW) 1 LED (red) | |
| for communications error on the Modbus Plus port (ERROR A) 1 LED (red) | |
| Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network |
| 2 female connectors SUB-D 9 for connecting to the Modbus bus | |
| Environment | |
| Product Certifications | CSA |
| CE | |
| UL | |
| Standards | HazLoc |
| Ordering and shipping details | |
| Category | 18150-QUANTUM CONTROLLERS,HSBY,COMM. |
| Discount Schedule | PC21 |
| GTIN | 3.59586E+12 |
| Returnability | No |
| Country of origin | FR |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.8 in (4.5 cm) |
| Package 1 Width | 6.1 in (15.5 cm) |
| Package 1 Length | 12.2 in (31.0 cm) |
| Package 1 Weight | 21.4 oz (607.0 g) |
| Contractual warranty | |
| Warranty | 18 months |
