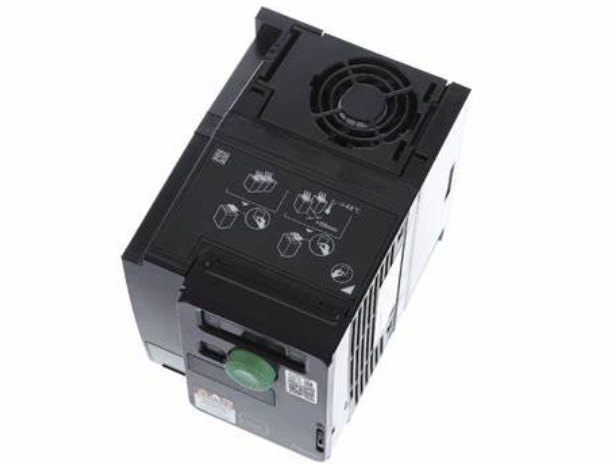

Schneider ATV320U06M2C Variable speed drive
variable speed drive
Altivar Machine ATV320, a variable speed drive designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements for 3 Phase synchronous and asynchronous motors from 0.18 to 15 kW (0.25 to 20 Hp). The Altivar Machine ATV320 variable speed drive improves machine effectiveness in a wide variety of applications. Altivar Machine ATV320 was designed to improve the effectiveness and efficiency of machines, while optimizing design and engineering costs for original equipment manufacturers (OEMs).
Product
Category :Motors, Actuators, Solenoids and DriversVariable Frequency Drives (VFDs)
Manufacturer: Schneider Electric
Series :Altivar
Packaging :Box
Part Status :Active
Mounting Type: Chassis Mount
Number of Motors :1
Voltage - Load: 200 ~ 240V
Current - Output :3.3A
Wattage - Load :370 W
Specifications
Open-loop motor control combined with simplicity for asynchronous and synchronous motors, even at low speed and dynamic accuracy for start/stop applications,
Advanced connectivity with automation architectures such as CANopen, EtherNet/IP - Modbus TCP, EtherCAT, Profibus, Profinet, DeviceNet.
Application specific functions and ATVLogic bring the application expertise and flexibility into the machines
Continuous machine operation in harsh environments with high levels of ambient temperature, dust, electrical interruptions, or mechanical disturbances. Ability to work in ambient up to 60°C with derating and 50°C without derating
Maximized machine operation time, as production changes, maintenance, safety diagnostics and operation, network configuration, and system integration can all to be accomplished quickly
Control of asynchronous and synchronous motors; including IE2, IE3 and PM motors in open loop
MachineStruxure integration in SoMachine
Operation in Velocity mode and Torque control (with current limitation)
Customizable and flexible application functions with ATV Logic (up to 50 function blocks)
Numerous application functions for targeted application segments
Ebmedded safety functions dedicated to targeted application segments
Very dynamic motor control performance (up to 400 Hz speed bandwidth) and cyclic application task (1 ms)
Possibility of Master/Slave daisy chain through PTO/ PTI
Company Service:
1. Fast delivery (1-3 days will ship out for in-stock products)
2. Rich experience (More than 10 years of sales experience)
3. Large inventory ( Various brands and overseas warehouse)
4. Quality insurance ( Clear products condition with 1-year warranty)
PACKAGING&DELIVERY:
Packaging details: original packing with factory seal
Delivery details: 1~3 days after payment
