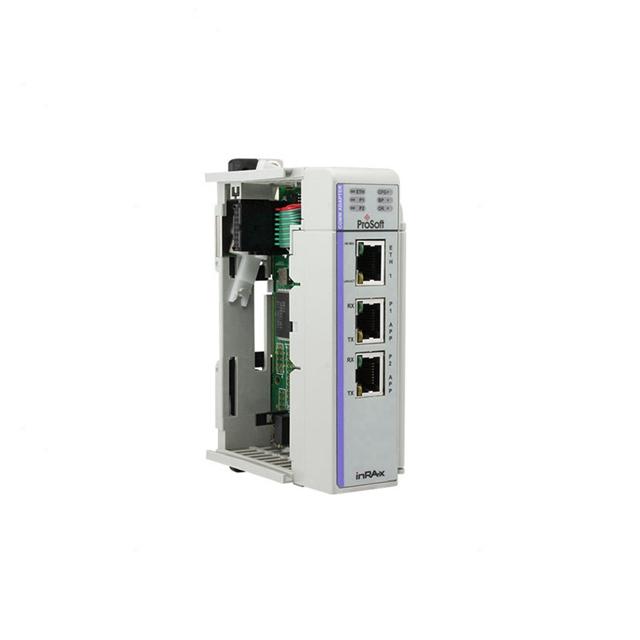

PROSOFT MVI69L-MBS Modbus Serial Lite Communication Module

MVI69L-MBS module delivers diagnostic data that is available in the processor controller tags. The unit’s add-on profile ensures an improved integration in the CompactLogix systems.

MVI69L-MBS module features 1 or 2 stop bits and the data size is 7 or 8 bits. The parity is defined as None, Even, or Odd while it comes with an RTS timing delay of 0 to 65535 milliseconds.

MVI69L-MBS module features the Modbus Master unit that actively issues the Modbus commands to the other nodes on the Modbus network. The status data is displayed on an individual command basis with the slave status list maintained on an active Modbus Master port.

MVI69L-MBS module features an ambient operating temperature range of 0 to 60 degrees Celsius while the ambient storage temperature range is -40 to 85 degrees Celsius. The debug Port features the 10/100 EtherNet Port.

MVI69L-MBS module is a ProSoft Modbus serial lite communication module classified under the Allen-Bradley/Rockwell Automation CompactLogix series.

MVI69L-MBS module features the ProSoft configuration builder software and it comes with an input-output size 240/240-16 bit integers. The unit’s Baud rate is 110 to 115 Kbaud and it comes with a current load rating of 450 mA maximum at 5 Volts DC. Designed for smaller applications, the unit delivers seamless communication between the application and the Modbus serial device. To ensure a reduced commissioning time, the unit comes with the add-on profile and the add-on instruction devices.

MVI69L-MBS module is also a single serial port with the ability to support master and slave connectivity.

MVI69L-MBS module configuration settings are backed up in a CompactLogix Project, with the module acting as a co-processor for reduced impact to the PLC Scan Time.

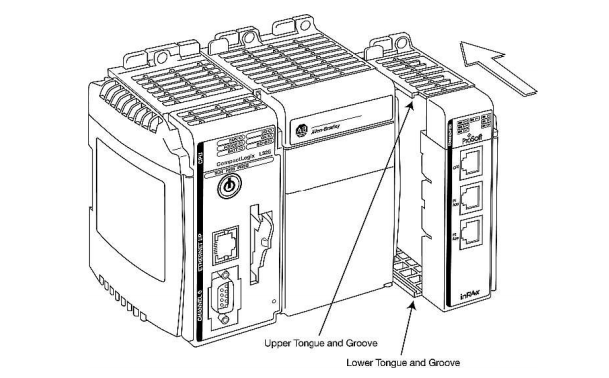

Align the module using the upper and lower tongue-and-groove slots with the adjacent module and slide forward in the direction of the arrow.

Move the module back along the tongue-and-groove slots until the bus connectors on the MVI69 module and the adjacent module line up with each other.
