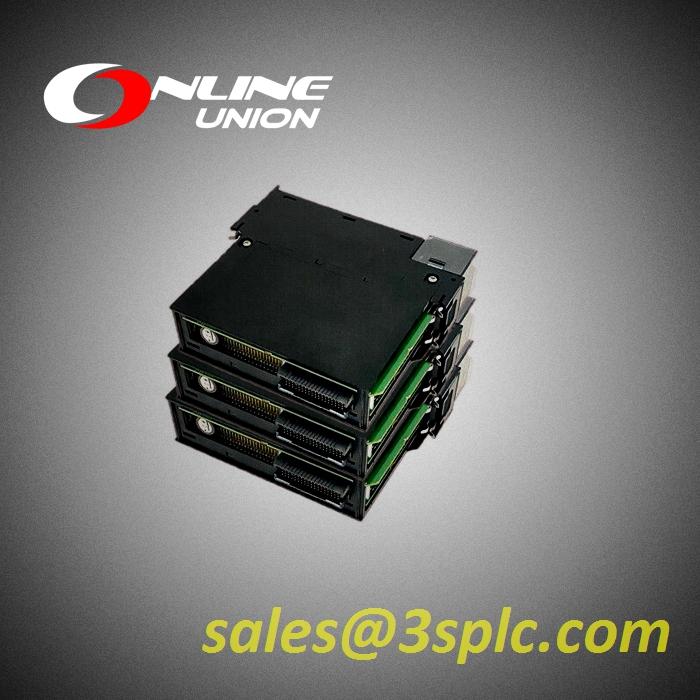

ProSoft MVI69-GSC Generic ASCII Serial Communication Module
Generic ASCII Serial Communication Module
The MVI69-GSC is a Generic ASCII Serial Interface Module from encompass partner module, Prosoft Technology. This module is a single module, this fits into the 1769 backplane. It has one (1) configuration port and two (2) application ports that supports RS-232, RS-485 or RS-422 (jumper selectable), RJ-45 (DB-9F with supplied cable), RS-232 handshaking configurable with 500 Volts of optical isolation from backplane.
Specifications:
Brand : ProSoft
Part Number/Catalog No. : MVI69-GSC
Manufacturer : ProSoft Technology
Compatible Series : MicroLogix; CompactLogix
Module Type : ASCII communication module
Available ports : One (1) Configuration port; Two (2) ASCII ports
Supported electrical standards : RS-232 / RS-485 / RS-422
Slot Width : Single slot
LED indicators : Battery and Module Status LED; Application status LED; Serial port activity LED; Configuration Port activity LED
Backplane Current : 800 mA @ 5 V
Power supply distance rating : 2; First 2 slots if used with 1769-L43 and -L45
Operating Temperature : 32° F to 140° F (0° C to 60° C)
Storage Temperature : -40° F to 185° F (-40° C to 85° C)
Relative humidity : 5% to 95% (without condensation)
Product Type : Generic Serial ASCII Network Interface Module
Rockwell Compatible Series : CompactLogix
Slot : 1
Data Transfer : Ladder Logic
Baud Rate : 110-115.2k baud
Registers to/from Control Processor : 4,000 max.
Dimensions : Standard 1769 Single-slot Module
Current Load : 800 mA max. @ 5 VDC
