ProSoft MVI56E-MCMR Modbus Communication Module Good condition

ProSoft MVI56E-MCMR Modbus Communication Module with Reduced Data Block

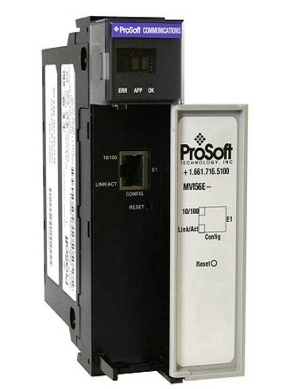

The MVI56E-MCMR is a ControlLogix Enhanced Modbus Master/Slave Communications Interface Module with Reduced Data Block. This module is developed by ProSoft Technology that is specifically compatible with ControlLogix controllers. This module is a single slot module with One (1) Debug / configuration Ethernet port, Two (2) Serial application ports. It has a reduced data block that makes this module require less backplane and network bandwidth.

Specifications：

Brand : ProSoft

Part Number/Catalog No. : MVI56E-MCMR

Manufacturer : ProSoft Technology

Backplane Current Load : 800 mA @ 5 V DC

Series : ControlLogix

Module width : Single slot

Compatible rack : 1756 chassis

Data size : 5,000 words

Communication port : One (1) RJ45 configuration port; Two (2) Serial Application ports

Ethernet Data Rate : 10 / 100 Mbps

Serial data rate : 110 baud to 115.2 kbps

MODBUS functionality : Master / Slave

LED Indicators : Module status, Battery status, Application status, Module Status

Operating Temperature : 32° F to 140° F (0° C to 60° C)

Storage Temperature : -40° F to 185° F (-40° C to 85° C)

Operating Shock : 30 g

Relative humidity : 5% to 95% (without condensation)

Product Type : Enhanced Modbus Master/Slave Communications Interface Module with Reduced Data Block

Slot(s) : 1

Rack Type : Remote

Data Transfer Type : Ladder Logic

Baud Rate : 110 baud-115.2 kbps

Commands per Master Port : 100 max.

Node Address : 1-247

Shock : 30g Operational
