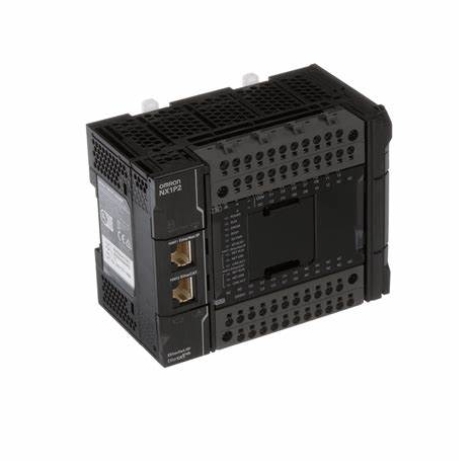

Omron NX1P2-9024DT Digital Safety Inputs Module
Sysmac NX1P CPU with 24 Digital Transistor I/O (NPN), 1.5 MB memory, EtherCAT (0 servo axes, 4 PTP axes, 16 EtherCAT nodes), EtherNet/IP and 1 serial option port
Specification
Primary task cycle time :2 ms
Program memory: 1.5 MB
Variables memory: 2 MB
Max. number of synchronous axes: 0
Max. number of PTP axes: 4
Number of digital inputs :14
Input type: PNP/NPN
Number of digital outputs: 10
Output type :NPN
Number of serial option boards :1
Max. number of expansion units: 8
Max. number of remote I/O nodes :16
Communication port(s) EtherCAT Master, EtherNet/IP, Ethernet: TCP/IP
Number of Ethernet ports :2
Number of USB ports: 0
Communication option(s): Serial RS-232C, Serial RS-422, Serial RS-485
Supply voltage DC :20.4-28.8 V
Product Height (unpacked): 100 mm
Product Width (unpacked) :124 mm
Product Depth (unpacked) :71 mm
Product Weight (unpacked) :590 g
Product
Alternate Mfr Part Number:NX1P29024DT
Family Name:NX/IO Family
For Use With:NX1P Series
Number of Axis:4
Number of Inputs:24
Output:NPN
Series:NX1P Series
Special Features:Digital and Analog I/O ; Temperature Input ; Heater Burnout Detector ; Load Cell Input ; Position Interfaces: Encoder and SSI Input ; Pulse Output ; IO-Link Master ; Serial Communications ; Additional NX power supply modules
Standards:UC1, CE, RCM, KC
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.

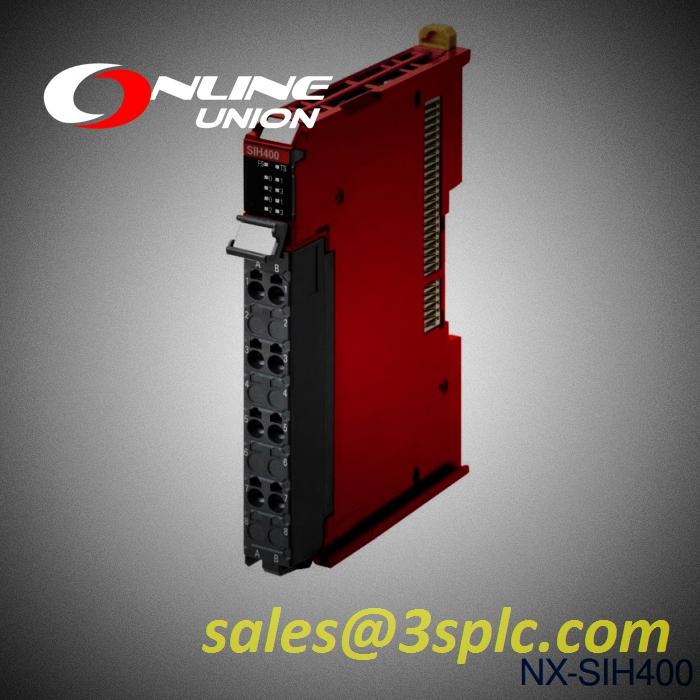

NX-SIH400
