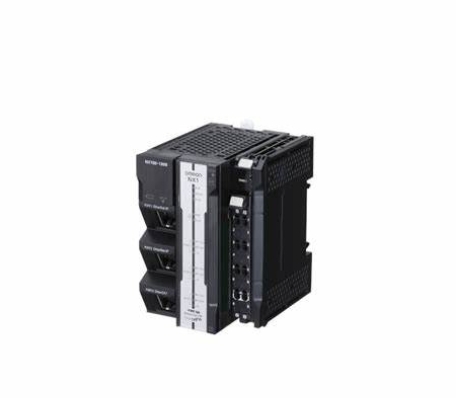

Omron NX102-1120 Digital Safety Inputs Module
Sysmac NX1 Modular CPU with with Database Connectivity, 5MB program and 33.5MB data memory , built-in EtherCAT (4 servo axes, 4 PTP axes, total 64 EtherCAT nodes), 2 Ethernet ports (OPC-UA and EtherNet/IP)
Specification
Controller functionality :DB connection, Motion control, OPC-UA, Position control, Sequence control
Max. number of synchronous axes: 4
Max. number of PTP axes: 4
Max. number of axes (incl. virtual) :15
Primary task cycle time: 1 ms
Program memory :5 MB
Variables memory :33.5 MB
Communication port(s) :EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Communication option(s): Serial RS-232C, Serial RS-422, Serial RS-485
Max. number of remote I/O nodes :64
I/O system :NX I/O Bus
Max. number of expansion units: 32
Product Height (unpacked): 100 mm
Product Width (unpacked) :66 mm
Product Depth (unpacked) :100 mm
Product Weight (unpacked) :470 g
Product
Alternate Mfr Part Number:NX1021120
Communication Port Type:EtherCAT ; 2x EtherNet/IP
Mounting Type:DIN Rail Mount
Number of Axis:8
Number of Inputs:3
Series:NX102 Series
Type:Motion ; Position
Voltage Rating:24 VDC
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
