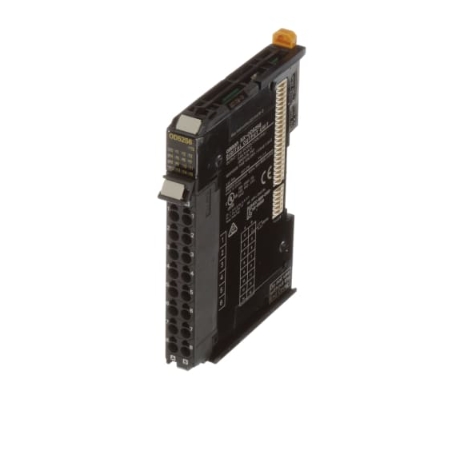

Omron NX-OD5256 Digital Safety Inputs Module
16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide
Specification
I/O system :NX I/O Bus
Type of module Digital :I/O
Number of digital inputs :0
Digital input type :None
OFF/ON delay: 0.5-1.0 ms
Number of digital outputs :16
Digital output type: PNP
Permitted voltage at output 1:5.0-28.8 V
Output current :0.5 A
Connection method :1-wire
Signal processing: Free running, Standard speed, Synchronous
I/O connection type: Push-in
Number of I/O connectors: 1
SIL according to IEC 61508 :None
Communication port(s): None
Number of IOV (V+) terminals :0
Number of IOG (V-) terminals :0
Number of COM terminals :0
Degree of protection (IP) :IP20
Product Height (unpacked) :104.5 mm
Product Width (unpacked) :12 mm
Product Depth (unpacked) :80.1 mm
Product Weight (unpacked) :70 g
Product
Alternate Mfr Part Number:NXOD5256
Application:Automation
Family Name:NX/IO Family
For Use With:NX/IO Series
Mounting Type:Panel Mount
Number of IO Ports:16
Number of Outputs:16
Output Type:Transistor
Primary Type:Output
Series:NX-OD Series
Standards:cULus: Listed (UL508) or Listed (UL 61010-2-201), ANSI/ISA 12.12.01,EU: EN 61131-2 or EN 61010-2-201, C-Tick or RCM, KC: KC Registration, NK, LR
