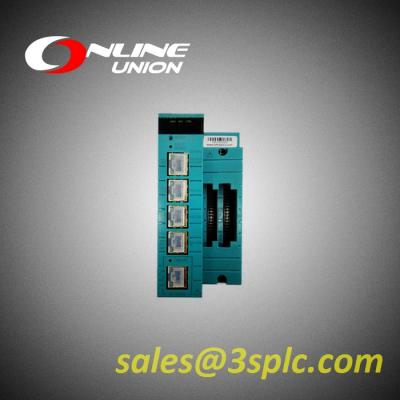

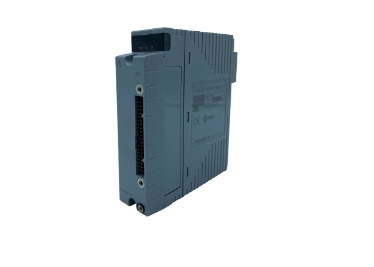

New Yokogawa AAI543-H03 Analog Input Module
The Yokogawa AAI543-H03 is a robust 16-channel isolated current output module designed for industrial automation systems. It reliably provides a 4 to 20 mA output signal and supports HART communication for configuration and diagnostics. This module features a standard switch-over response in redundant configurations, ensuring continuous operation in critical environments.
Technical Specifications
Number of Output Channels:16
Output Signal: 4 to 20 mA
Withstanding Voltage:1500 V AC between output and system,
for 1 minute
Allowable Load Resistance:0 to 750Ω
Circuit-open Detection: Less than 0.65 mA
Accuracy: ±48μA
Data Update Period:10ms
Drift due to Ambient Temperature Change: ±16μA/10C
Maximum Current Consumption: 230mA (5 V DC), 540 mA(24 VDC)
Weight: Approx.0.4 kg
External Communication: Pressure clamp terminal, MIL
connector cable, dedicated cable (KS1)
HART Communication:Available
Switch-over Response:Standard in redundant configuration
Our Company:
As a professional PLC DCS spare parts supplier, Online Union Trade Co., Ltd has been in the automation industry for nearly 13 years. Our products are including Allen Bradley, Bently Nevada, ABB, GE Fanuc, Honeywell, Triconex, Foxboro, Bachmann, ICS Triplex, Hima, Prosoft.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
