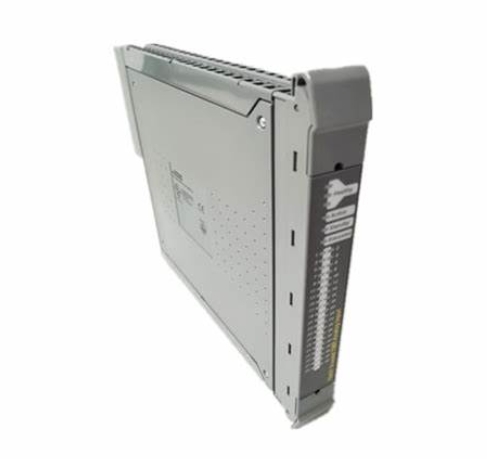

ICS Triplex T8461 Digital Output Module 60V DC
The Ics Triplex T8461 is a TMR (triple modular redundancy) digital output module that provides high availability and reliability forcritical applications. It has 16 channels of 24/48 VDC output with automatic overcurrent protection, and is isolated from the PLcby a 2500 V impulse withstand opto/galvanic barrier. The module is also equipped with a watchdog timer to prevent errors due tocommunication loss or power failure.
Technical specifcations for T8461
Features
TMR (triple modular redundancy) for high availability and reliability
16 channels of 24/48 VDC output
Automatic overcurrent protection
2500 V impulse withstand opto/galvanic isolation barrier
Watchdog timer to prevent errors due to communication loss or power failure
Specifications
System Supply Voltage Range : 20 to 32Vdc
Circuit Type : Fault tolerant, fully triplicated with optional line monitoring
Number of Outputs : 40 channels
Independent Power Groups :5 each of 8 outputs
Operational Output/Field Voltage Range : 18 to 60V dc
Output Voltage
Weasurement Range : 0 to 60v dc
Maximum Withstanding : -1 to 60v dc
Output Current Rating ( Continuous ): 0.75A per channel
6A per power group
Minimum On state Load Curent : 25mA
Output Off State Resistance (effective leakage) : 33kP
Maximum capacitance Pre release 3.5: 30-55uF
Release 3.5: at least 3500uF at 0.754
Flashing/pulsing current loads : Release 3.5 is recommended
Outout On State resistance : 0.6P
Qutput Short Circuit Protection : Electronic (latching)
Channel to Channel Crosstalk: >-40dB
Power Consumption
Field supply at 24V (0.75A per channel): 18W
System supply(24V): 22W
Field Common lsolation
Sustained Working : +250V dc
Maximum Withstanding : +2.5kv da
Output Tum-on/off Delay: 0.5ms
Sample Update Time : 0.5ms
sequence of Events
Event Resolution : 1ms
Time-stamp Accuracy: +0.5 ms
Self-Test Interval : 2 minutes
Intrinsic Safety : External barrier
Output Short Circuit Protection : Automatic
Operating Temperature : -5'C to 60'C (23'F to 140-F)
Non-operating Temperature : -25'C to 70'C (-13'F to 158-F
Temperature change : 0.50c/min
Operating Humidity : 5-95% RH non-condensing
Environmental specifications : Refer to Document 552517
Dimenslons
Height : 266mm (10.5ins)
Width : 31mm (1.2ins)
Depth : 303mm (12ins)
Weight :1.285kg (2.8lbs)
