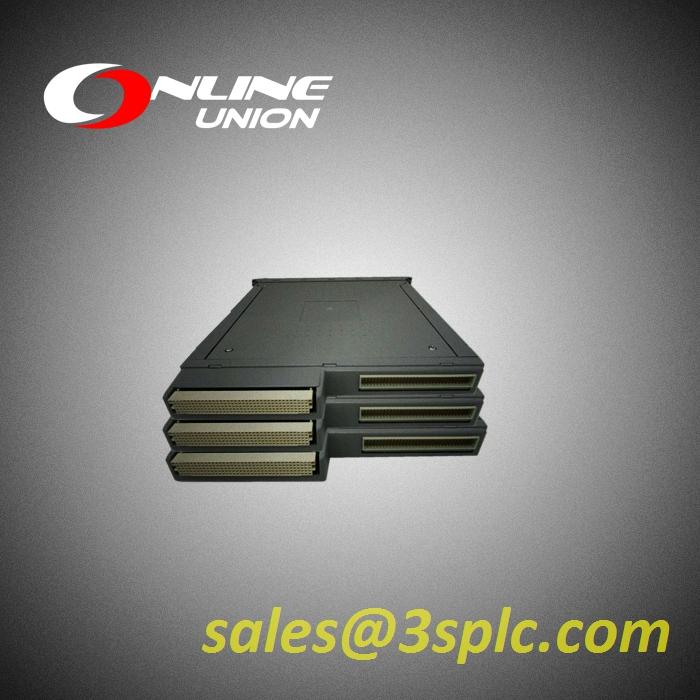

ICS Triplex T8232C Analogue FTA
The Trusted 40 Channel Analogue Input FTA Non-Incendive T8831 provides termination for a maximum of 40 input channels from various types of field devices which generate an analogue input. Figure 2 below shows the configuration of a single channel. The supply for the field is derived from dual 24 Vdc feeds which are ‘commoned’ via diodes on the FTA. Indication of the presence of the power supply is provided by a green LED. The supply is then fed to each channel. The supply voltage to the field is fed via the 145 Ω resistor. This effectively limits the current in the field loop allowing inputs from non-incendive field devices located in hazardous areas. The voltage developed across the 250 Ω resistor due to the incoming analogue signal from the field device is fed directly to the analogue input module.

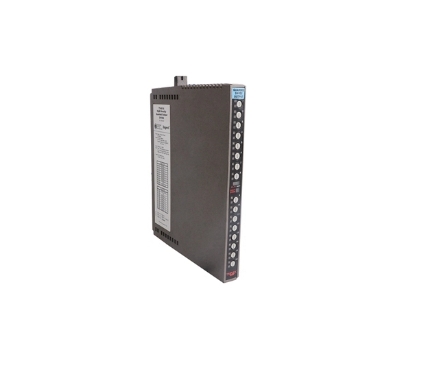

ICS TRIPLEX T8232C Digital input module:
High reliability: The T8232C has very high reliability, mainly due to its triple redundancy design. This design means that each system contains three independent processing units that run in parallel and monitor each other, ensuring that the system can continue to operate in the event of a failure. This fault tolerance makes it very suitable for critical task applications, such as industrial automation and control systems.
High performance: T8232C has fast response time and high output current capability, which enables them to handle various complex application requirements, including controlling high-power loads.
Comprehensive safety features: The T8232C is equipped with various safety features, such as overcurrent protection, short circuit protection, and reverse polarity protection, which help protect modules and connected devices from damage. In addition, it also provides comprehensive automatic diagnosis and self checking functions, which can detect and solve problems in a timely manner.
Our Company:
As a professional PLC DCS spare parts supplier, Online Union Trade Co., Ltd has been in the automation industry for nearly 13 years. Our products are including Allen Bradley, Bently Nevada, ABB, GE Fanuc, Honeywell, Triconex, Foxboro, Bachmann, ICS Triplex, Hima, Prosoft.
FAQ & Contact:
Q: Are you a trading company or a manufacturer?
A: We are a trading company.
Q: What is your lead time?
A: It usually takes one to three days if we have it in stock. If the goods are not in stock, you need to negotiate.
Q: Does your company provide samples? Is it free or do you charge extra?
A: It depends on the goods you need and the quantity you order.
Q: What are your terms of payment?
A: 100% T/T before shipping. If the quantity is large, we can negotiate.
