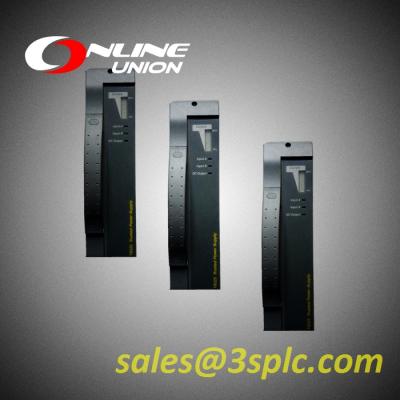

ICS Triplex T8110B Trusted TMR Processor Module
The Trusted@ processor acts as the central processing unit in a reliable system, providing robustcontrol and monitoring capabilities. It manages input and output data from various analog and digitalmodules in a communication bus between "rusted TMR modules. Applications of a trusted TMR processor,from fire and gas control to turbine control,vary at the level of integrity.
Technical specifcations for T8110B
Facilities
Additional Modular Triple(TMR),Fault Tolerant Operation(3-2-0)
Fault tolerant hardware architecture(HIFT).
Dedicated hardware and software for quick fault detection and response.
Automatic fault control without intrusive alarm.
The Historian of the Error of the Seal of Time.
Hot replacement for seamless operation without reloading the app.
It supports the full set of IEC 61131-3 programming languages.
Front panel indicators for the health and status of the module.
RS232 front-panel serial troubleshooting port for monitoring, configuring and programming.
IRIG-B002 and 122 Time Sync Signals(only available on T8110B).
Errors and crashes of active and standby contacts of the processor.
RS422/485 adiustable connectors(only available on T8110B).
Specifications:
Voltage Range: 20 Vdc to 32 Vdc
Max Load: 80W
Heat Dissipation: 80W
Processor Frequency: 100MHz
Memory:
.DRAM: 16MB ED0 60 ns
.EPROM: 512 KB
.Flash: 2 MB
.NVRAM: 128 KB
Maintained Variable Storage :
.Dialect:1 byte
.Analog:4 bytes
.Timer:5 bytes
I/O interface:Redundant triple module interface
Operating Temperature:0Cto60C(32°F to 140°F)
Passive Temperature:-25°Cto70C(-13°F to 158°F)
Relative humidity range:10%-95%，non-condensing
Dimensions:
Height:266 mm(10.5 inches)
Width:93mm(3.6 inches)
Depth:303 mm(12.0 inches)
Weight:2.94 kg(6.48 1bs)
