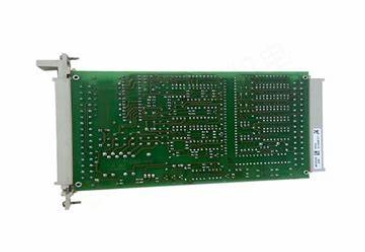

HIMA F6705 Analog Switching Amplifier
The HIMA F 6705 is a 2-fold digital-to-analog converter module designed for safety-related applications. It provides outputs of 0/4 ...20 mA, which are individually galvanically isolated. The module features safety isolation and an integrated safety shutdown, and can operate in either source or sink mode. It meets requirement class AK 1 ... 6 and is automatically fully tested during operation.
Technical Specifications:
Outputs:
Current Output: 0/4...20mA
Resolution: 12 bits (4095 steps); 0 = 0
mA,3840=20 mA
Burden (RB):
Source Mode:≤ 550 0hm including line resistance to the burden
Sink Mode: ≤(UQ - 10 V) / 21.2 mA (UQ = source voltage)
Errors:
Basic Error:≤ 0.2% (40 μA) at 25 °C
Operating Error: ≤ 0.4% at 0 ... +60℃
Line Length:Maximum 1000 m (consider burden)
Electric Strength: 250 V against Analog- GND
Basic Status with Plug-in:| ≤40 μA
Source Voltage (UQ) for Sink Mode:10...30V
Space Requirement: 4 TE
Operating Data:
5VDC: 85 mA
24 V DC: 130 mA
