IC697CPX928
IC697CPX928

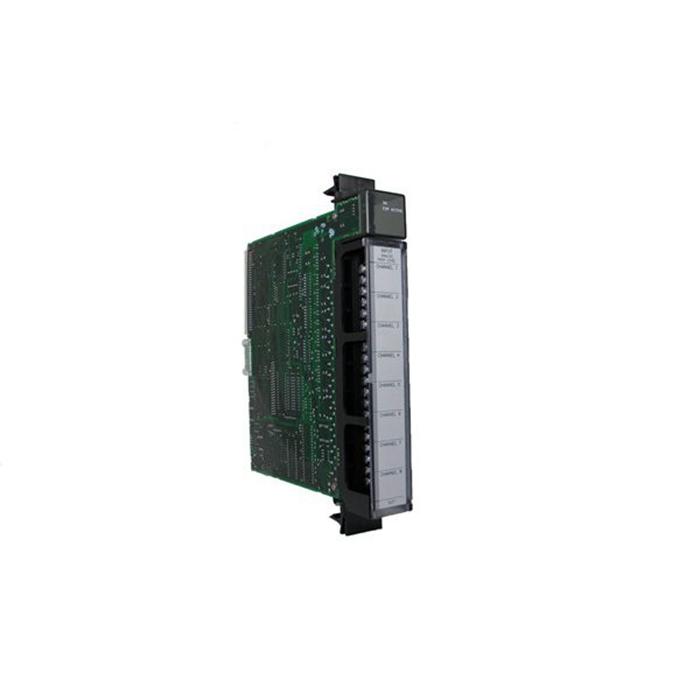

GE Fanuc IC697CPX928 Series 90-70 Central Processing Unit (CPU) module.

IC697CPX928 This CPU has 6MB battery-backed memory, and 256KB non-volatile user flash memory, processor speed of 96MHz with typical scan rate of 0.4 µs per Boolean function.

  • Item no.:

    IC697CPX928
  • Payment:

    T/T,Western Union
  • Market price:

    $99
  • Price:

    $30
  • Product origin:

    USA
  • Goods stock:

    10
  • Lead Time:

    1-3days

Product description

The IC697CPX928 is capable of handling a maximum of 12K inputs and outputs of any combination, and up to 8K analog Input and Output. It supports 32-bit floating point data.

The IC697CPX928 is configured using the programming software. It has no jumper terminals or DIP switches for hardware parameter setting. Application software are Programmed by MS-DOS software products, or Windows based software products running on Windows 95 or Windows NT over Ethernet TCP/IP or through an SNP port.

This controller has is equipped with Seven (7) status LEDs specifically, a lithium battery that is used to retain the contents of the Random Access Memory (RAM), and communication ports such as One (1) RS232 serial port, Two (2) RS485 Serial port and One (1) Factory Reset port.

The IC697CPX928 is compatible for use with a variety of option modules to enhance and provide additional capabilities to the CPU. These option modules include Ethernet Interface modules, Programmable Coprocessor, Alphanumeric Coprocessor, Bus Controller, Communication modules, I/O Link Interface, and the entire IC697 discrete and analog I/O modules family.

The nominal current required by the IC697CPX928 module is 3.1 Amps. The input voltage required is 5 Volts DC. With forced air-cooling rated at 70 CFM, the module can be operated at ambient temperatures between 32 and 140 degrees Fahrenheit.



Packing & Delivery

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.

Our Services

1  All our products are new and original, and of good quality.

2  Our prices are very competitive.

3  We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.

4  All inquiries will be valued and will reply in 24 hours.

5  Fast shipping, and good after-sale service
