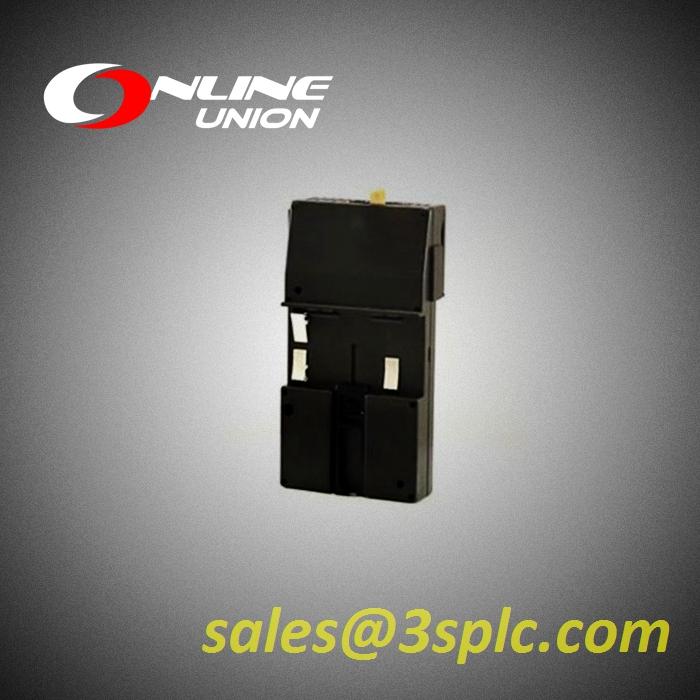

GE Fanuc IC693ALG222 Module

VersaMax Nano PLC Features- IC693ALG222

VersaMax Nano PLCs offer the perfect solution for smaller packaging machines, dispensing machines, and relay replacement applications with up to 6 inputs and 4 outputs. In spite of their small size, these versatile controllers provide powerful programming features such as built-in high-speed counter functionality, support for floating-point function blocks and subroutines, ability to assign passwords and privilege levels, and override capability.

IC693ALG222 Nano PLC General Specifications

Typical Scan Rate: 1.3 ms/K for Boolean logic (see appendix A)

Output Power Supplies: +5VDC on pin 7 of Serial Port, 100mA max

Maximum number of slave devices per RS-485 network:  8 (can be increased with a repeater). Requires IC200ACC415.

Realtime clock accuracy (for timer functions): +/- 0.5%

Product Packaging

1.For the in stock items, we will ship to you in 3-5 days after receiving the payment.

2.We can shipping all over the world via DHL,UPS,FEDEX,TNT and EMS.

3.If you have shipping agent please tell us before shipment.

RS-232 Serial Port

The RS-232 serial port has an RJ-45 connector. The serial port defaults to SNP protocol, and can be configured for SNP/SNPX, slave or RTU slave using the configuration software. It can also be configured for Serial I/O and controlled using COMMREQs from the application program. The port automatically switches from RTU to SNP for programmer communications.

Why buy from Online Union Trade Co., Ltd?

Online Union Trade Co., Ltd sells at prices below MSRP and part is handled with care throughout the ordering and shipping process. Our warehouse staff makes sure that your products will arive at your business safe and in top notch working order.
