Product description

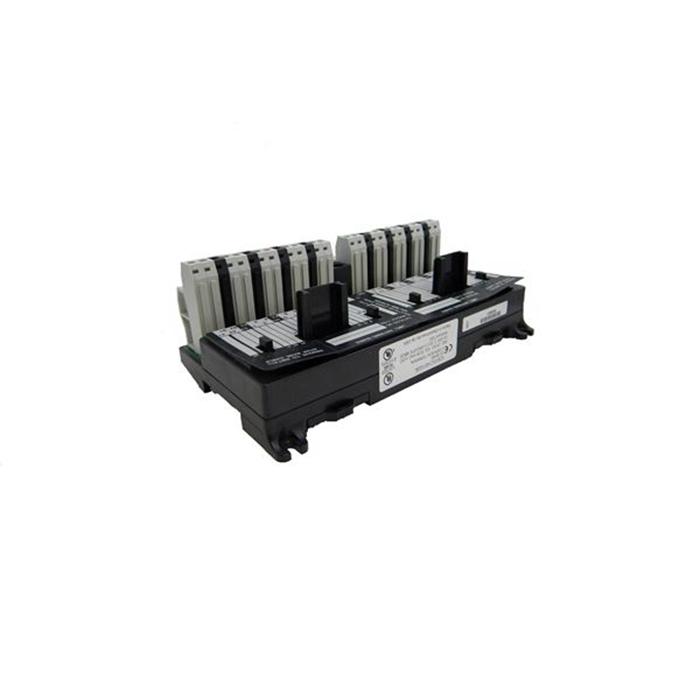

IC670PBI001-BE Field Control is a family of highly-modular distributed I/O and control products. They are suitable for use in a wide range of host architectures. The heart of the Field Control system is the Bus Interface Unit. The Bus Interface Unit provides intelligent processing, I/O scanning, and feature configuration for a group of up to eight I/O modules. Together, the Bus Interface Unit and its modules make up a Field Control station (see the illustration, left). The Bus Interface Unit and I/O modules are enclosed in sturdy, compact aluminum housings. Bus Interface Unit and I/O modules bolt securely to separate Terminal Blocks, which provide all field wiring terminals. The I/O Terminal blocks are generic and allow different I/O module types to be mounted on the same base. I/O Terminal Blocks are available with box-type terminals, barrier-type terminals, or wire-to-board connectors. All Terminal Blocks must be mounted on a DIN rail. The DIN rail, which serves as an integral part of the grounding system, can also be mounted on a panel.
The Profibus Bus Interface Unit interfaces Field Control I/O modules to a Profibus I/O bus. The intelligent processing capabilities of the Profibus Bus Interface Unit allow the configuration of features such as fault reporting, selectable input and output defaults, analog scaling and analog range selection for the modules in the station. In addition, the Profibus Bus Interface Unit performs diagnostic checks on itself and its I/O modules, and relays diagnostic information to the host (if configured for fault reporting) and to a Hand-held Programmer. The Bus Interface Unit mounts on a Bus Interface Unit Terminal Block. The Bus Interface Unit can be removed and replaced if necessary without removing the wiring or reconfiguring the I/O station.
Packing & Delivery
1)100% brand New and Original Factory Seal!
2)Warranty: 1 year
3)Package: Original packing with cartons.
4)Delivery time: Shipped in 3-7 days after payment
5) All the goods will be tested before shipment.
Our Services
1 All our products are new and original, and of good quality.
2 Our prices are very competitive.
3 We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4 All inquiries will be valued and will reply in 24 hours.
5 Fast shipping, and good after-sale service
