Siemens, as a leading global provider of industrial automation and digital solutions, has a wide product line and advanced technology. Among them, the 6DD series, as an important component of Siemens industrial automation products, has won widespread recognition in the market for its excellent performance and wide application areas. This article will provide a detailed introduction to some key parameters and data of the Siemens 6DD series, leading you to a deeper understanding of the powerful features of this series.

Overview of Siemens 6DD Series

The Siemens 6DD series covers a variety of industrial automation components, including communication modules, expansion modules, control modules, etc., widely used in SIMATIC control systems and various automation solutions. These modules have become the preferred products in the field of industrial automation due to their high reliability, scalability, and ease of maintenance.

Key parameters and data

6DD1607-0CA1: Expansion Module

Function: 6DD1607-0CA1 is an optional plug-in expansion module designed specifically for the FM 458-1 DP basic module. It supports reading and outputting signals with strict time requirements, and has digital and analog input/output functions.

Interface and Connection: This module can connect incremental encoders and absolute encoders, providing 4 high-resolution analog outputs. In addition, it also supports operation in a fanless environment at 40 ℃, ensuring stable operation of the device.

Expansion capability: Through the optional EXM 438-1 I/O expansion module, 6DD1607-0CA1 can achieve direct signal exchange between the FM 458 basic module and the system, ensuring that the FM 458 can use the latest signal values in every cycle (starting from 100 microseconds).

Physical specifications: Although the specific product size is not provided, its packaging size is 23.30 x 30.10 x 6.30 centimeters, with a net weight of 1.031 kilograms

6DD1661-0AE1: Ethernet Communication Module

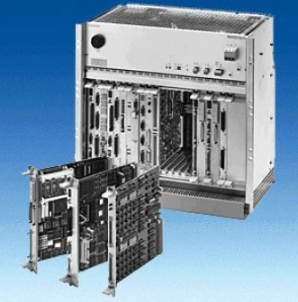

System application: 6DD1661-0AE1 is a part of the SIMATIC TDC automatic control system, which has high computing power and the ability to process large programs. It serves as an industrial Ethernet communication interface, mainly used to connect automation systems such as SIMATIC S7.

Communication Protocol: This module uses Ethernet TCP/IP and UDP protocols for communication, supports PG/OP communication, and can be debugged and diagnosed through STEP7/CFC/SFC programming.

Functional features: 6DD1661-0AE1 provides a library of over 300 functional modules for quick system configuration. It also supports visualizing process variables and various types of information through SIMATIC human-machine interface systems (such as WinCC).

Other 6DD series products

The Siemens 6DD series also includes numerous other products, such as PLC modules, frequency converter modules, power modules, etc., each with unique parameters and characteristics. For example, the Siemens 6ES7 322 digital module provides 16 digital outputs, supports control room installation, and has a program capacity of 64kbyte and a data capacity of 8mbyte. The Siemens 6SE6440 frequency converter module has a high power range and multiple power supply voltage options, suitable for various industrial automation scenarios.

application area

The Siemens 6DD series is highly favored due to its wide range of application areas. Whether it is automated production lines in the manufacturing industry, power control systems in the energy industry, or signal control systems in the transportation industry, Siemens 6DD series products can be seen. They provide a solid foundation for automation solutions in various industries due to their high efficiency, reliability, and ease of maintenance.

Product website：

https://www.3splc.com/6DD_c0_ss

The Siemens 6DD series, as a leader in the field of industrial automation, has won widespread praise in the market for its outstanding performance and wide range of applications. Through the introduction in this article, I believe you have gained a deeper understanding of the Siemens 6DD series. In the future, with the continuous development of industrial automation and digital technology, the Siemens 6DD series will continue to play an important role in providing more efficient and reliable support for automation solutions in various industries.
