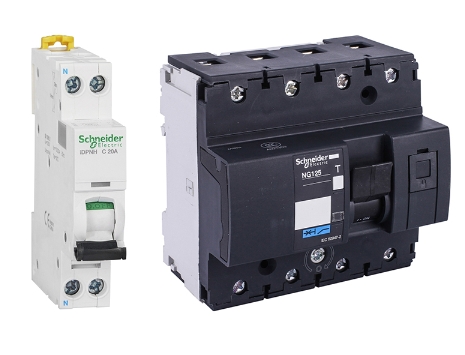

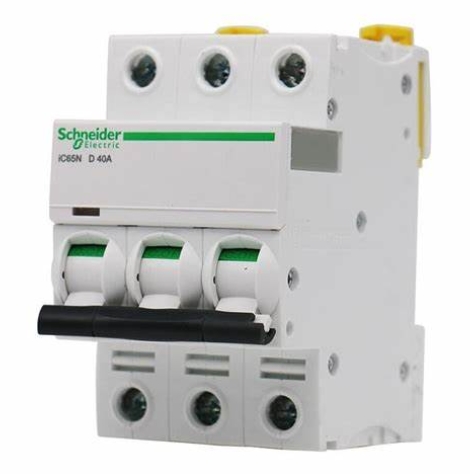

Schneider circuit breaker

Schneider circuit breaker is a switch device that can close, carry and disconnect current under normal circuit conditions, and can close, carry and disconnect current under abnormal circuit conditions (including short-circuit conditions) within a specified time. According to the scope of use, Schneider circuit breakers can be divided into high-voltage circuit breakers and low-voltage circuit breakers, among which low-voltage circuit breakers are often referred to as automatic switches or air switches.

The main advantages of Schneider circuit breakers include

High reliability:

 Advanced magnetic field simulation and material technology are adopted to ensure the operational accuracy of circuit breakers, improve product durability, and reduce failure rates.

Stability performance:

 It has excellent electromagnetic compatibility, excellent protection characteristics, and a unique overload protection scheme to ensure the stable operation of the equipment.

Good safety performance:

able to quickly and accurately respond and cut off circuits, protect equipment from damage caused by overcurrent and short-circuit currents, and automatically release energy storage after power failure, avoiding potential hazards of equipment continuing to operate.

Humanized design:

Easy to operate, equipped with indicator lights and touch screens for user control, while providing power protection and temperature control functions to ensure normal operation in special environments.

High brand reputation:

Schneider Electric is one of the industrial pioneers in France, a Fortune 500 company, and a top global electrical company with over 170 years of history and high brand reputation.

Rich product line:

Schneider has a rich product line of circuit breakers, including miniature circuit breakers, molded case circuit breakers, frame circuit breakers, and other types, to meet different scenarios and needs.

Complete after-sales service:

Schneider has over 500 local distributors and sales channels in China, with large inventory, sufficient stock, obvious delivery advantages, and a complete after-sales service system.

Characteristic

Multiple protection functions:

Schneider circuit breakers have multiple protection functions such as overload protection, short circuit protection, and undervoltage protection, which can comprehensively protect the safety of circuits and equipment.

Intelligent control:

Some high-end models of Schneider circuit breakers support intelligent control, which can be remotely controlled and monitored through remote monitoring and control systems.

Strong adaptability:

Schneider circuit breakers can adapt to different working environments and conditions, including high temperature, low temperature, humidity and other harsh environments, ensuring the stable operation of equipment.

usage method

Check status:

Before operation, first ensure that the circuit breaker is in the closed state. If the circuit breaker is already open, please close it again.

Find the operating handle or button on the circuit breaker, which is usually located above or on the side of the switch on the circuit breaker panel.

Opening operation:

Move the handle or button from the "open" position to the "close" position, which will cut off the power and put the circuit breaker in the open state.

For certain models of Schneider circuit breakers, it may be necessary to press the disconnect button to achieve the disconnection operation.

Closing operation:

When confirming that the circuit is safe and power needs to be restored, perform the closing operation.

Move the handle or button from the "off" position to the "on" position, which will restore normal operation of the circuit breaker and restore power supply.

For circuit breakers that require energy storage (such as MT air circuit breakers), it is necessary to ensure that the energy storage indicator displays "Charged OK" before closing, and then press the closing button to close.

matters needing attention:

Please ensure compliance with safety regulations when operating circuit breakers. For example, before disconnecting the power, ensure that all related devices are turned off.

Avoid maintenance or repair work when the circuit breaker is energized to prevent electric shock accidents.

Safety Operation and Maintenance Regulations

Precautions for safe operation:

When operating Schneider circuit breakers, ensure that the circuit on the equipment has been cut off. This can be achieved by turning off relevant switches, stopping the power supply of the device, unplugging the device, and other methods.

Before disconnecting the power supply of the equipment, it is recommended to perform a no-load circuit breaker operation, that is, to repeatedly open and close the equipment in a short period of time, so that the equipment can respond to faults other than normal short-circuit protection current, thereby avoiding operational failures.

Schneider circuit breakers are susceptible to lightning strikes, so in the event of thunderstorms, it is necessary to promptly cut off the circuit, turn off the equipment power, and take lightning protection measures.

It is strictly prohibited to use overload current to prevent equipment from running under overload.

Equipment maintenance procedures:

Regular maintenance:

Regular maintenance of Schneider circuit breakers can ensure the normal service life of the equipment and extend its usage time

Environmental requirements: Place the circuit breaker in a dry environment and keep it clean and dry to prevent moisture or other pollutants from entering the equipment.

Component replacement:

Replace important components such as contacts, springs, etc. according to the specified service life. Cleaning work: Timely clean the dust and dirt on the equipment to avoid secondary pollution to the equipment.

Professional maintenance:

In case of equipment damage or malfunction, professional personnel should be sought for repair, and arbitrary maintenance methods should not be adopted.

In summary, Schneider circuit breakers play an important role in power systems, and their high reliability, stability, and safety performance have been widely recognized. Schneider Electric, with its rich product line and advanced technological strength, provides high-quality power solutions for global users.
