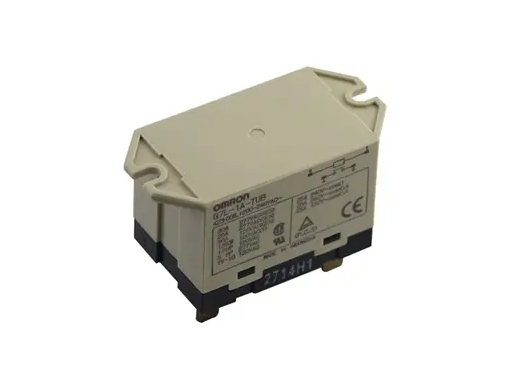

G7L Power Relay

Omron's high-capacity, high-dielectric-strength relay is compatible with momentary voltage drops

Omron's G7L power relay is a miniature-sized relay for maximum switching power, particularly for inductive loads. ltoffers a wide range of AC-activated coils that handle 100 Vac to 120 VAc or 200 VAc to 240 Vac at either 50 Hz or60 Hz. No contact chattering occurs for momentary voltage drops up to 50% of rated voltage.

Overview

-SPST-NO or DPST-NO contact types

-Quick connect, PCB or screw terminals

-20, 25 or 30A rated load,  3HP, 277VAC

-Compatible with momentary voltage drops

-Wide range of applications with 100 or 200V coils

Specifications

Max. switching voltage: 250VAC

Minimum Load: 100 mA@5 VDC

Operating temperature: -25 to 60°C

More Products In Stock:

In the field of power control, Omron G7L relay has become the "all-around champion" in the industry with its outstanding performance. Its characteristics are as follows:

1.Wide range coil, suitable for various voltage requirements

The coil design of Omron G7L relay covers AC100~120V 50/60Hz of AC100V series and AC200~240V 50/60Hz of AC200V series, achieving a wide range of coils. This unique design enables the G7L to maintain stable operation in the face of various voltage fluctuations.

2.High capacity, high voltage resistance, easy to handle inductive loads

Omron G7L relay has the characteristics of high capacity and high voltage resistance, which can easily cope with the challenges of inductive loads. This means that G7L can provide stable and reliable power control solutions for both industrial production and household electricity use.

3.Don't be afraid of sudden voltage drop, keep the contact stable

The Omron G7L relay will not cause contact vibration even if there is an instantaneous voltage drop below 50% of the rated voltage. The strength of this performance lies in ensuring the stability of power control, avoiding equipment failures or safety hazards caused by voltage fluctuations.

4.Multiple installation methods, flexible to adapt to different environments

Omron G7L relay provides various installation methods such as terminal blocks, screw terminals, printed circuit board terminals, and surface connection sockets. Users can choose the most suitable installation method based on their actual needs and environmental conditions.

5.Through multiple certifications, quality is guaranteed

Omron G7L relay not only meets the IEC950 standard certification, but also has passed multiple international standard certifications such as UL, CSA, TUV certification, etc. This indicates that the quality and safety of G7L have been rigorously inspected and recognized.

6.Contact spacing of 3mm, more considerate safety design

The contact spacing of Omron G7L relay is only 3mm, which ensures a safe distance between contacts and avoids potential safety risks. At the same time, this also allows the G7L to perform excellently in situations where space is limited.

Based on the above characteristics, the Omron G7L relay is undoubtedly a reliable power control device. Whether it is industrial production or household electricity, whether facing complex power environments or harsh operating conditions, Omron G7L relays can provide you with stable and reliable power control solutions. Choose Omron G7L relay to make power control simpler, safer, and more efficient!
