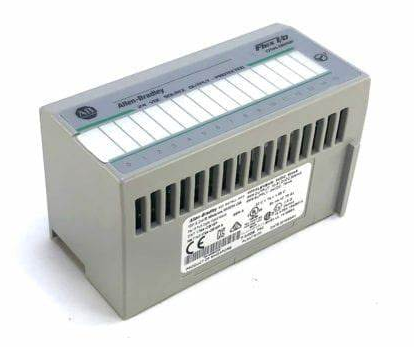

Allen Bradley1794-OB16P Flex I/O discrete output module
Description For1794-OB16P
It requires an external DC supply voltage range of 10 to 31.2 Volts DC, with the 5% AC ripple and an external DC supply current range of 25 to 75 mA. The module’s ON-state output voltage drop is 0.5 Volts DC. The minimum current on-state output is 1 mA per channel and the maximum is 500 mA per channel or 8 Amps per module. This module also has a leakage current of 0.5 mA for off-state output and a maximum output surge current of 1.5 Amps for 50 milliseconds that is repeatable every 2 seconds. This module does not have any isolation between the individual channels.
The 1794-OB16P’s output delay is 0.5 milliseconds in the OFF to ON state and 1 milliseconds in the ON to OFF state. The maximum power dissipation is 5 W at 31.2 Volts DC, the thermal dissipation is 17 BTU/hour at 31.2 Volts DC, and the maximum Flexbus current is 60 mA. The 1794-OB16P module has an operating temperature of 0 to 55 degrees Celsius and a storage temperature of -40 to 85 degrees Celsius and comes with a non-condensing relative humidity of 5 to 95%. It also has an operating vibration of 30g and a non-operating vibration of 50g. Its vibration is 5 g at 10 to 500 Hertz.
Allen Bradley's 1768-PB3 is a CompactLogix power supply. The 1768-PB3 is powered through the CompactLogix backplane. By using this backplane, the 1768-PB3 power supply is compatible with the 1768 and 1769 controllers, input/output modules, and power supply
Product specification
Model Number:1794-OB16P
Product name: 1794-OB16P
Payment :Paypal\TT\Western Union\ Trade Assurance
MOQ :1PCS
Package :Carton Package
Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex
Service :24 Hours Online Service
Lead time :5-7 Days
Condition :100% Original
Original factory:Allen-Bradley1794-OB16P In stock best price
| Shipping term: TNT DHL FEDEX UPS |
| Warranty: 12 Months |
| Condition: Original & new |
