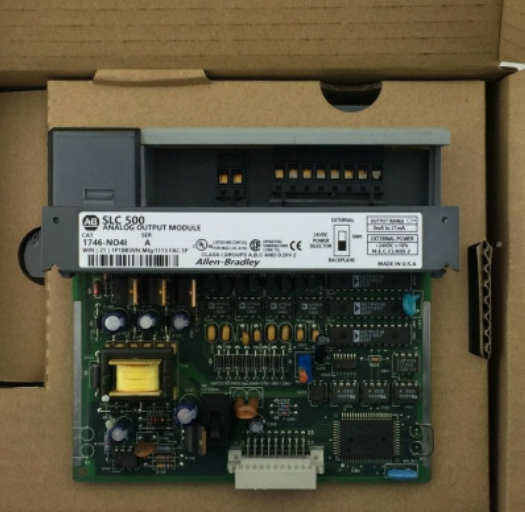

Allen-Bradley1746-NO4I SLC 500 Analog Output Module.

Allen-Bradley 1746-NO4I SLC 500 Analog Output Module.

Description Fo1746-NO4I

 The Allen-Bradley 1746-NO4I is an SLC 500 Analog Output Module. This Analog Output Module has Four (4) Current outputs channels that provides output range of 0 to +20 mA. This module is used with SLC 500 fixed or modular style hardware.

The Allen-Bradley 1746-NO4I is an SLC 500 Four (4) channel analog output module using a 16-bit 2’s complementary binary format. It has 4 current outputs that have an output range of 0 to +20 mA with full-scale current output of 21 mA. The backplane current draw of this module is 55 mA at 5 VDC while and 195 mA at 24 VDC while the over range capacity is 5% (0 to 21 mA and 1 LSB). Its power supply voltage rating is 24 Volts DC +/- 10% at 195 mA maximum and the backplane isolation is 500 Volts DC. Note that some applications require 21.6 to 26.4 Volts DC power when there is not enough power flowing from the SLC power supply.

The 1746-NO4I also comes with an update response time of 512 µs for all the channels that are in parallel. The input step response of this module is 2.5 milliseconds at 95%. Its operating temperature is 0 to 60 degrees Celsius; Storage temperature is -40 to 85 degrees Celsius, and its non-condensing ambient relative humidity is 5 to 95%. This factory-calibrated output module has an open enclosure and it is only compatible with the 1746 chassis. An LED status indicator is also present in this module. The 1746-NO4I has a load range of 0 to 500 ohms and maximum load reactance of 100 µH, with a converter resolution of 14 bits via the R-2R Ladder conversion method. The 1746-NO4I’s maximum overall accuracy drift is +/- 70 ppm/ degree Celsius of the full-scale accuracy.

Product specification

 Place of Origin ：Original

Model Number :1746-NO4I

Product name： AB PLC

MOQ :1

Warranty： 1 Year

Shipping term :TNT DHL FEDEX EMS UPS

Condition ：100% Original

Type :1746-NO4I

Original factory:Allen-Bradley1746-NO4I In stock best price

Our ServicesApplication Industry

1. Power industry, the elevator industry, parking lot, automobile, automobile supporting.

2. Feed industry, aluminum smelting machinery, refrigeration industry.

3. Iron and steel industry, combustion control system, non-ferrous metal smelting.

4. Glass industry, engineering machinery, textile machinery, water treatment.
