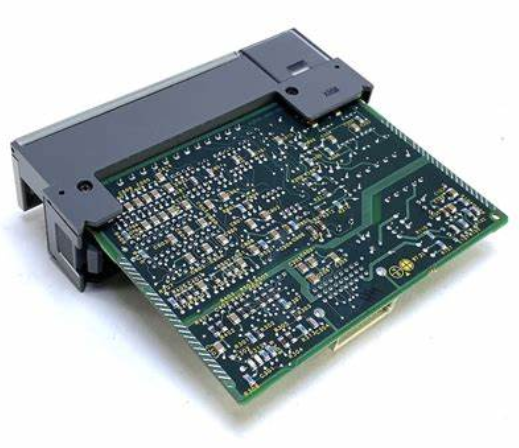

Allen-Bradley1746-NIO4V SLC500 analog combination module.

Allen-Bradley 1746-NIO4V SLC500 analog combination module.

Description Fo1746-NIO4V

The 1746-NIO4V SLC 500 Analog Combination I/O Module by Allen-Bradley is an I/O module installed on the 1746 Chassis that has 2 user-selectable (per channel) current or voltage inputs and 2 voltage outputs. It has 2 current-loop inputs with a normal rating of -20 to 20mA at a 250 Ohm impedance and an input accuracy of +/- 0.642% at a drift rate of 79 ppm/5 degrees Celsius. Its two input points also have voltage ratings of -10 to 10 Volts DC with an impedance of 1M Ohm and a 10 Volt DC full-scale resolution of 305.176 ? V per LSB.

The voltage inputs have an accuracy of +/-0.504%, an overall drift accuracy of +/- 63 ppm/degree Celsius, and a maximum gain error of +/- 0.461%. The inputs have an offset error of +/- 14 LSB at 0 to 60 degrees Celsius, and the 1746-NIO4V maximum overvoltage protection across the input terminals comes in at either 220 Volts AC or 220 Volts DC. It uses the R-2R Ladder Digital-to-Analog Converter (DAC) with a converter resolution of 14 bits at its voltage output and a response time of 2 milliseconds. The output has a load range greater than 1KOhms with a load reactance of 1? F and an overall output range of -10 to 10 Volts. The voltage has an overall accuracy of +/- 0.384% of a 10 Volt DC full-scale voltage and a maximum drift accuracy of +/- 54 ppm per degree Celsius. The 1746-NIO4V also has a maximum gain error of +/- 0.374% with a drift error of ±47 ppm/ degree Celsius and an output offset error of +/-11 LSB. The 1746-NIO4V offers Field Wiring-to-Backplane Isolation at 500 Volts DC and uses the Shielded Belden #8761 recommended cable with a rated 14 AWG size.

Product specification

Model Number:1746-NIO4V

Product name:1746-NIO4V

Payment :Paypal\TT\Western Union\ Trade Assurance

MOQ :1PCS

Package :Carton Package

Shipping By DHL\UPS\Fedex\EMS\TNT\Aramex

Service :24 Hours Online Service

Lead time :5-7 Days

Condition :100% Original

Original factory:Allen-Bradley1746-NIO4V In stock best price
