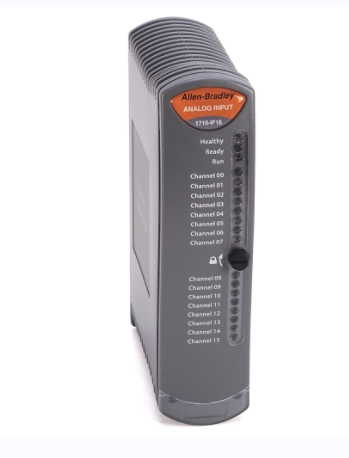

Allen-Bradley1715-IF16 Redundant I/O modules

The 1715-IF16 is a Bulletin 1715 Redundant I/O module 16-Point Analog Input Module. This module has a 16-Point Analog Input Module. It has a Power Dissipation of 4 Watts Maximum and it supports a Shielded Wire Type of 22 to 16 AWG with Dimensions of 166 x 42 x 118 millimeters and a weight of 360 grams.

The 1715-IF16 is a redundant I/O module. It is manufactured by Allen-Bradley, a division of Rockwell Automation. The 1715-IF16 is classified under the Allen-Bradley 1715 series of redundant I/O modules. The isolation voltage is 50 Volts continuous as the basic installation type with the I/O ports to the backplane. The I/O module comes with a power dissipation of 4 Watts maximum. The 1715-IF16 also is a point analog input module type with the shielded wire type. The minimum non-operating temperature or the storage temperature for the 1715-IF16 is -40 degrees Celsius while the maximum storage temperature for the module is 85 degrees Celsius. The relative humidity range for the 1715-IF16 is specified as 10 to 95%, non-condensing.

The 1715-IF16 weighs 360 grams per unit as the shipping weight. The 1715-IF16 features a supply power rating or a current rating of 260 mA at an operating voltage range 18 to 32 Volts DC. The slow rate for the 1715-IF16 is rated at a maximum rate of 700 mA per second. For the 1715-IF16, there is no isolation between the individual I/O ports on the module. The wiring category for this redundant I/O module is category 2 on the shielded signal ports. The operating temperature for the 1715-IF16 is a minimum of -25 degrees Celsius and a maximum of 70 degrees Celsius. The vibration resistance is rated at 2 g at 10 to 500 Hertz frequency, while the shock resistance during operation is 25 g for the DIN rail mounting orientation, and for the panel mounting orientation, the resistance is rated at 30 g. For the non-operating status, the 1715-IF16 comes with a shock resistance of 30 g when it is installed, and when it is uninstalled, the shock resistance is 50 g.
