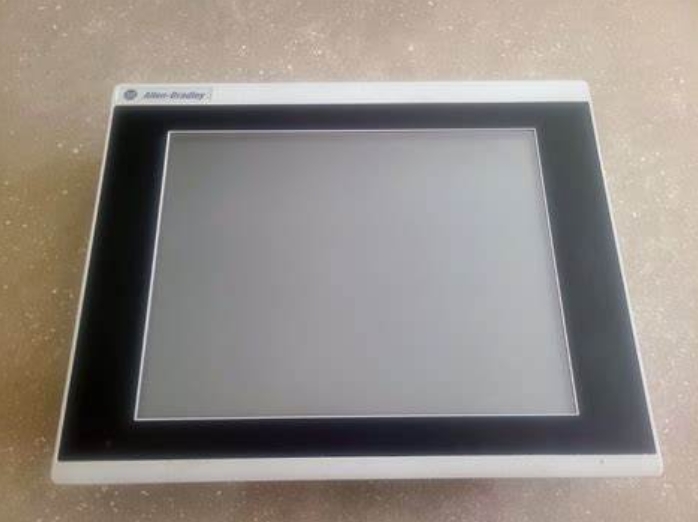

Allen Bradley 2711R-T10T PANELVIEW 800 10.4-INCH HMI TERMINAL
PANELVIEW 800 10.4-INCH HMI TERMINAL
The Allen-Bradley 2711R-T10T is a PanelView 800 graphic terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 24VDC. It has a 10.0-inch Color transmissive TFT active-matrix LCD, widescreen format with embedded Analog Touchscreen operator interface. It has a variety of communication ports such as, One (1) RS232/RS422/485 and One (1) Ethernet, USB port and micro-SD card slot.
Technical specifcations for 2711R-T10T
Brand: Allen-Bradley
Display size: 10 in.
Product Family: PanelView 800 Graphic Terminals
Operator Input: Touch
DisplayType: Color transmissive TFT active matrix LCD, widescreen format
Display Area: 211.2 x 158.4 mm (8.31 x 6.24 in.)
Resolution: 800 x 600
Touch: Analog touch
Random Access Memory (RAM): 256 MB DDR
Communication ports: One (1) RS-422 and RS-485 port, One (1) RS-232 port and One (1) Ethernet communication ports.
System Memory: 1 GB RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
input Voltage range: 18-32 VDC
Power Consumption: 14 W (0.48 A @ 24V DC)
Product Line: Panelview 800
Display Color: Color TFT
Input Type: Touchscreen
Communication: Serial and Ethernet
input Power: 24 VDC
Memory: 256 Mb
Shipping Weight: 10 lbs
Shipping Dimensions: 18x14x8 inches
Series: A
