Allen Bradley 2711P-T7C4D2 PowerFlex 700 Brand new

Allen Bradley 2711P-T7C4D2 PowerFlex

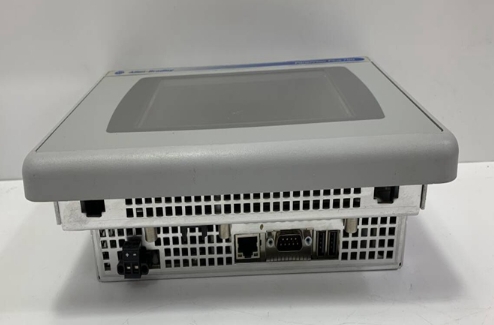

The Allen-Bradley 2711P-T7C4D2 is a PanelView Plus 700 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 6.5-inch colored display with embedded RS232 and Ethernet communication ports. This operator terminal has a Touchscreen input interface with internal memory of 128 MB Flash and 128 MB RAM.

Technical specifications for 2711P-T7C4D2

Backlight：CCFL 50,000 hours life, min.

Display Size：6.5 in. inches

Brand：Allen-Bradley

Manufacturer:Rockwell Automation

Product Family:PanelView Plus Operator Terminals

Product Type:PanelView Plus 700 Operator Terminals

Operator Input:Touch

Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)

Lifecycle status:Discontinued

Display Area:132 x 99 mm (5.2 x 3.9 in.)

Resolution:640 x 480

Toiuchscreen:1 million presses

Actuation force:10-110 g

Internal memory:128MB Flash Memory / 128MB Random Access Memory

Integrated ports:Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB communication ports.

Input Voltage range:18-32VDC

Part Number/Catalog No.：2711P-T7C4D2

Product Line：Panelview Plus 700

Display Color：Color

Input Type：Touchscreen

Communication：Ethernet and RS-232

Input Power：18 to 32 Volts DC

Memory：128 MB

Communication Cable：1761-NET-ENI

Shipping Weight：8 pounds

Shipping Dimensions：14 x 11 x 8 inches

Series：Series A, B, C, D, E, F, G

UPC：10662073072321

Product Lifecycle Status*：Discontinued/Obsolete

Description

The Allen-Bradley 2711P-T7C4D2 is a visualization and control hardware solution that is manufactured by Allen-Bradley. This product belongs to the PanelView Plus 700 operator terminals that functions as Human Machine Interface (HMI), enabling real-time interaction between machine and operator from a single location in the plant floor area.

This operator terminal mainly features a 6.5-inch colored display screen with display area of 132 x 99 mm (5.2 x 3.9 in.) and resolution of 640 x 480 pixels. This display is ideal for small and simple application due to the limited workspace however, it comes with a colored display which is capable of providing high level of information compared to grayscale terminals.

Process operator or machine users are provided with an analog resistive touchscreen as the input area. This touchscreen interface is rated for 1 million actuations at an operating force of 10-110 g. To input control commands and navigation to the HMI, the operator simply touches the appropriate area of the screen where the HMI runtime object is displayed.
