Allen Bradley 2711P-T7C4D1 PowerFlex

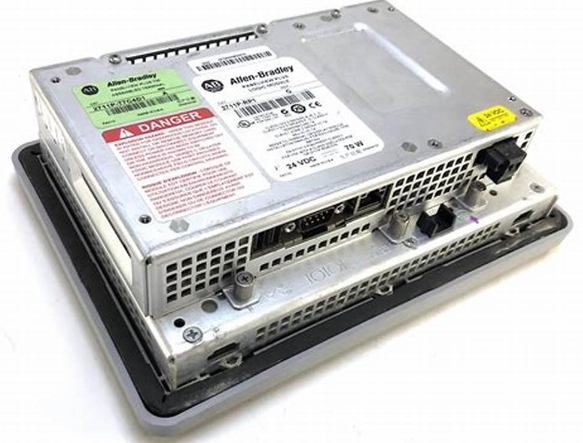

The Allen-Bradley 2711P-T7C4D1 is a PanelView Plus 700 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 6.5-inch colored display with embedded RS232 and Ethernet communication ports. This operator terminal has a Touchscreen input interface.
Technical specifications for 2711P-T7C4D1
Display Size6.5 in. inches
BacklightCCFL 50,000 hours life, min.
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus Operator Terminals
Product Type:PanelView Plus 700 Operator Terminals
Operator Input:Touch
Display Type:Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Lifecycle status:Discontinued
Display Area:132 x 99 mm (5.2 x 3.9 in.)
Resolution:640 x 480
Toiuchscreen:1 million presses
Actuation force:10-110 g
Internal memory:64MB Flash Memory / 64MB Random Access Memory
Integrated ports:Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB communication ports.
Input Voltage range:18-32VDC
Part Number/Catalog No.2711P-T7C4D1
Product LinePanelview Plus 700
Display ColorColor
Input TypeTouchscreen
CommunicationEthernet and RS-232
Input Power18-32 VDC
Memory64 MB
Communication Cable1761-NET-ENI
Shipping Weight8 lbs.
Shipping Dimensions14 x 11 x 8 in
SeriesSeries A, B, C, D, E, F, G
Product Lifecycle Status*Discontinued/Obsolete
Description
The 2711P-T7C4D1 is an Allen-Bradley PanelView Plus 700 operator terminal. The discontinued 2711P-T7C4D1 is an operator terminal that enables the user to interface with their machine. This PanelView Plus terminal is ideal for applications with a need to observe, change, and display information graphically. The 2711P-T7C4D1 is programmed with RSView Studio Machine Edition. This HMI has a 6. The user is able to control the HMI using the Touchscreen to input information and data. The 2711P-T7C4D1 is powered using 18 to 32 Volts of DC power. This terminal has 64 MB of internal memory. The approximate shipping weight and dimensions are 8 lbs. and 14 x 11 x 8 inches. EtherNet/IP (Ethernet Industrial Protocol) is an open industrial network that supports real-time I/O messaging, as well as message exchange. The Ethernet port connects to a controller on an EtherNet/IP network by using both the network and standard Ethernet connections. This port can work with application transfers and printing as well. The EtherNet/IP screen displays and allows the user to modify some of the EtherNet/IP communication settings for a PanelView terminal. This port has an RJ45, 10/100Base-T connector for network communication and supports MDI/MDI-X connections. The parameters are downloaded with the application.
