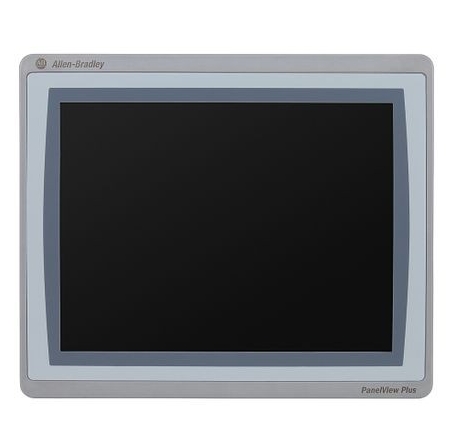

Allen Bradley 2711P-T7C22D8S PanelView Plus 7 Standard 7 Terminal
The Allen-Bradley 2711P-T7C22D8S is a PanelView Plus 7 Standard Color Terminal designed for industrial applications. It features a TFT 7-inch VGA touch screen display, facilitating user interaction and control within industrial environments.
Equipped with a single Ethernet port, the terminal enables seamless communication and data exchange with networked devices. It operates on a 24V DC power supply, ensuring compatibility with standard industrial power systems.
The terminal runs on the Windows CE operating system, providing a familiar and reliable platform for running applications and managing operations within industrial environments.
Technical specifcations for 2711P-T7C22D8S
Brand: Allen-Bradley
Display size: 6.5 inches
Product Family: PanelView Plus 7 Standard terminals
Operator Input: Touch
DisplayType: Color active-matrixTFT
Display Area: 132 x 99 mm
Resolution: 640 x 480 VGA, 18-bit color graphics
Touch: Analog resistive Actuation: 1 million presses; operating force: 100 g
System Memory: 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
Communication ports: Two (2) Ethernet, Two (2) USB host
input Voltage range: 18-30 VDC
Power Consumption: 50 W max (2.1 A at 24V DC)
Backlight: White light-emitting diode, solid state Life: 50,000 h min at 40 °C (104 °F) to half-brightness,backlight is not replaceable
Product Line: Panelview Plus 7
Input Type: Touchscreen
Display Color: TFT Color Display
Memory: 512 Mb
input Voltage: 24 VDC
Backlight: LED
Weight: 2.65 LBS
