Allen Bradley 2711P-T7C15A1 PowerFlex

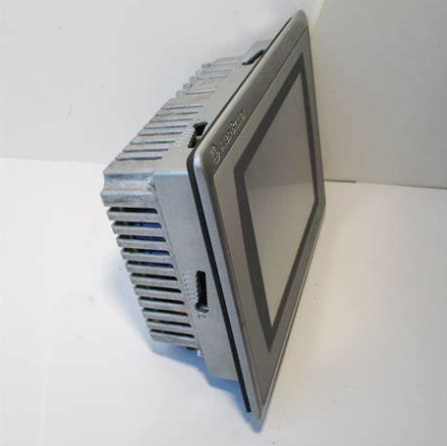

The Allen-Bradley/Rockwell Automation 2711P-T7C15A1 terminal is an operator terminal from the Panelview Plus 700 terminal series. Its screen supports color graphics, it is 6.5 inches wide, and it is both a display screen and a touchscreen. The 2711P-T7C15A1 operator terminal supports ControlNet communication. Its memory capacity is 64 MB and its operating voltage range is from 85 to 264 Volts AC.
Technical specifications for 2711P-T7C15A1
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T7C15A1
Product LinePanelview Plus 700
Display Size6.5 in.
Display ColorColor
Input TypeTouchscreen
CommunicationControlNet
Input Power85-264 VAC
Memory64 MB
Backlight2711P-RL7C
Communication Cable1747-KFC15A
Shipping Weight8 lbs.
Shipping Dimensions14 x 11 x 8 in
SeriesSeries A, B, C, D, E, F, G
Product Lifecycle Status*Discontinued/Obsolete
Description
The Allen-Bradley 2711P-T7C15A1 PanelView™ Plus 6 - 700 2711P-T7C15A1 is a better version of the Allen-Bradley PanelView™ Plus 6 – 600 terminal. The difference between the PanelView™ Plus 6 - 700 and the PanelView™ Plus 6 - 600 is that the 700 has a larger (6.5-inch) screen and a resolution of 640 x 480, while the 600 has only a 5.7-inch screen and a resolution of only 320 x 240. The 2711P-T7C15A1 has color graphics display with a touchscreen input. This terminal has a flash memory of 64 MB. This terminal is equipped with 512 MB of RAM (with 79 MB of free user memory). This terminal offers backup restore functionality and is equipped with an automatic repair operations feature. The Allen-Bradley 2711P-T7C15A1 supports ActiveX® Controls. This terminal can connect to the internet and support remote connectivity both with VNC and FTP servers. This terminal manages the data that is saved in the .CSV file format. The Allen-Bradley 2711P-T7C15A1 PanelView™ Plus 6 - 700 measures 179 x 246 x 55 mm. The weight of this terminal is 1.7 kg. The ambient temperature around the terminal must be between 0 and 55 °C (32 and 131 °F). Please leave adequate space around the terminal and inside the enclosure. Also, make sure to allow adequate ventilation. Be sure to consider the heat generated by other devices inside the enclosure. The specifications for the dimensions of the safe distances for mounting this terminal are available in the manual.
