Allen Bradley 2711P-T6C3A PowerFlex

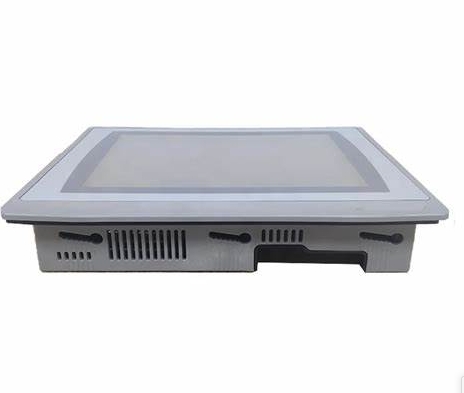

The 2711P-T6C3A terminal is an operator interface terminal that is AC-powered and controlled by a touchscreen. It has been designed and manufactured by Allen-Bradley/Rockwell Automation in the Panelview Plus 600 terminal series. The 2711P-T6C3A operator interface terminal can operate with an input voltage range between 85 and 264 Volts AC at 47 to 63 Hertz frequency. The touchscreen that controls this terminal is 6 inches wide and it supports an actuation rating of approximately 1 million presses and an operating force rating of up to 100 grams.
Technical specifications for 2711P-T6C3A
ManufacturerRockwell Automation
BrandAllen-Bradley
Part Number/Catalog No.2711P-T6C3A
SeriesPanelView Plus 600
Module TypeOperator Interface Terminal
Input TypeTouchscreen
Power Supply120 Volts AC
CommunicationRS-232, USB, Ethernet, DH-485
Display5.7-inch Color
UPC10781180130684
Product Lifecycle Status*Discontinued/Obsolete
Description
The Allen-Bradley 2711P-T6C3A PanelView Plus 600 interface device is used in automation applications to graphically view and control a machine’s status. The 2711P-T6C3A provides an easy interface through its 5.7in color active matrix thin-film-transistor (TFT) touchscreen which has an antiglare surface. Its touchscreen also offers a 320 x 240-pixel display resolution with 4.37in x 3.3in display dimensions and it offers a display surface that is resistant to 110G of shock. The 2711P-T6C3A has a display Luminance of 300 cd/m2 Nits a cold cathode fluorescent backlight, and a built-in internal clock with ±2 minutes per month accuracy, and a 5-year maximum battery backup time. It offers 64MB of internal user memory for application backup and 64MB of RAM for temporary program storage. It can process user information using its 350MHz NEC VR5532A MIP processing unit.
