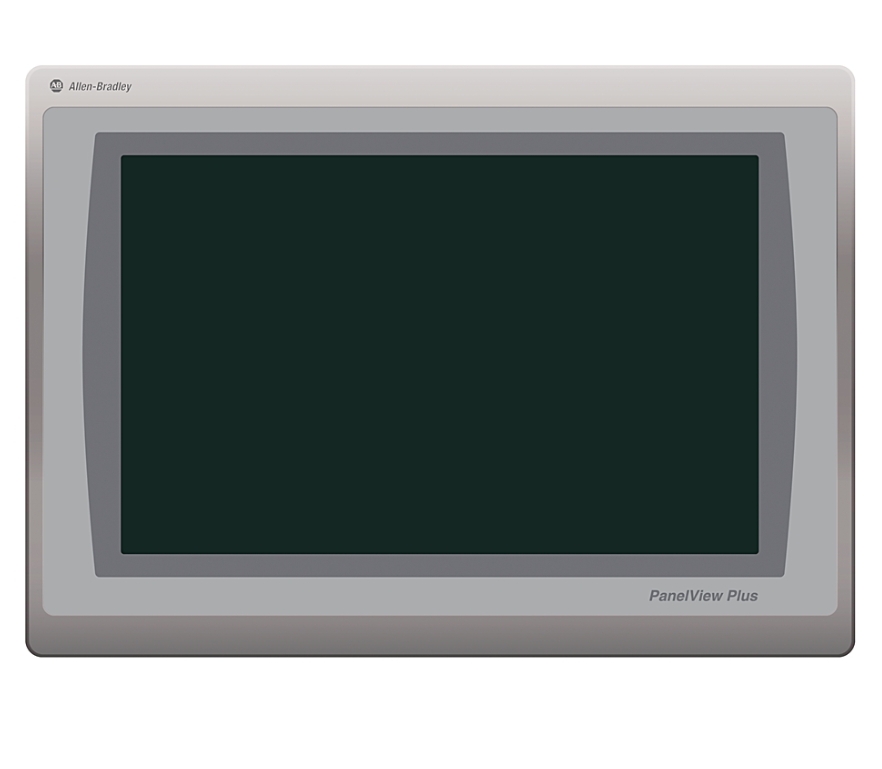

Allen Bradley 2711P-T12W22D9P PanelView Plus 7 Graphic Terminal
PanelView Plus 7 Graphic Terminal
PanelView Plus 7 Performance Stainless Steel Terminals, Touch Screen, 12 WXGA, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows 10 IoT Core, Performance Model
The Allen-Bradley 2711P-T12W22A9P is a PanelView Plus 7 Performance operator terminal. This Human Machine Interface (HMI) device is powered by an external supply voltage of 18-32VDC. It has a 12.1-inch Color active matrix, thin-film transistor (TFT) LCD wide screen with embedded Touchscreen operator interface. It has a variety of communication ports such as, Two (2) Ethernet and Three (3) USB ports.
Technical specifcations for 2711P-T12W22D9P
Brand: Allen-Bradley
Display size: 12.1 in.; wide screen
Product Family: PanelView Plus7 Performance terminals
Operator Input: Touch
DisplayArea: 261x163 mm (10.3 x6.4 in.)
Resolution: 1280x800 WXGA,18-bit color graphics
Touch: Analog resistive Actuation: 1 milion presses; operating force: 100 g
System Memory: 512 RAM, 512 MB nonvolatile memory (approx. 80 MB free user memory)
Communication ports: Two (2)Ethernet, Three (3) usB host
input Voltage range: 18-30 VDC
Powerconsumption: 50 W max (2.1A at 24V DC)
Backlight: White light-emitting diode, solid state Life: 50,000 h min at 40℃ (104 °F) to half-brightness, backlight is not replaceable
Product Line: Panelview Plus 7
Product Type: Human-Module interface
Input Type: Touchscreen
Memory: 512 Mb
input Voltage: 24 Volts DC
Backlight: LED
Weight: 5.6 pounds
Dimensions: 24.6 x13.39 x69 centimeters
