Allen Bradley 2711P-T10C22D9P PowerFlex 700 Brand new

Allen Bradley  2711P-T10C22D9P   PowerFlex

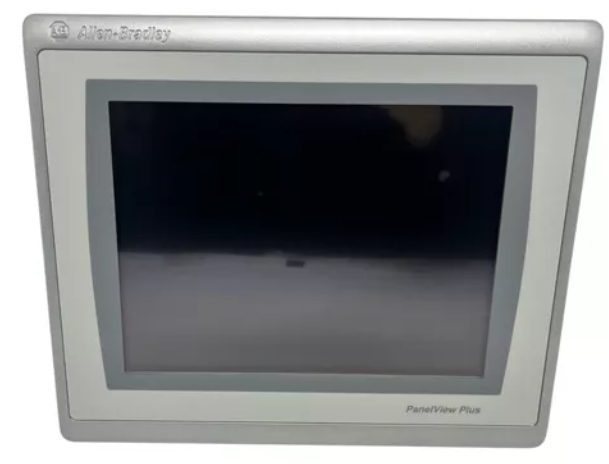

The Allen-Bradley 2711P-T10C22D9P is a Panelview Plus 7 Performance Operator Terminal. This operator terminal is powered by an external 18-30VDC supply voltage and has a 10.4-inch colored display with embedded Two (2) Ethernet and Two (3) USB communication ports. This operator terminal has a touchscreen input interface.

Technical specifications for 2711P-T10C22D9P

Display Size：10.4 inches

Brand：Allen-Bradley

Manufacturer:Rockwell Automation

Product Family:PanelView Plus 7 Performance Graphic Terminals

Product Type:PanelView Plus 7 10-inch Performance Terminals

Operator Input:Touch

Touch screen:Analog resistive touchscreen

Actuation rating:1 million presses

Operating force:100 grams

Display Type:Color Active Matrix TFT LCD

Display Area:211 x 158 mm (8.31 x 6.22)

Resolution:800 x 600 SVGA, 18-Bit

Backlight:CCFL 50,000 hours life, minimum

Application memory:512 MB RAM and 512 MB storage; User memory 80 MB

Communication ports:(3) USB; (1) RS232; (1) Ethernet

Input Voltage range:18-30VDC

Part Number/Catalog No.：2711P-T10C22D9P

Product Line：Panelview Plus 7

Input Type：Touchscreen

Display Color：Color

Memory：512 Mb

Input Voltage：24 Volts DC

Backlight：LED

Weigh：t5.03 pounds

UPC：885630844626

Description:

This PanelView Plus 7 2711P-T10C22D9P by manufacturer Allen Bradley is a touchscreen performance PanelView, used to input commands to a network through its color TFT display with an 18-bit, 800 x 600 SVGA resolution. The white-light diode, solid state LED backlight on this panelview has around 50,000 hours of life and CANNOT be replaced. It contains a single SD card to allow for external storage which supports SD cards corresponding to the number 1784-SDx. It also has two 10/100 Base-T DLR Ethernet ports. In addition, it has a pair of Type A, high speed 2.0 USB ports and one high speed 2.0 device port. With 24 Volts of DC nominal supply voltage, this unit consumes at maximum 50 Watts of power and supports (PELV) and (SELV) 24 Volt DC supplies. This unit weighs roughly 5.03 pounds (or 2.28 kilograms), measuring approximately 9.92 x 11.69 x 2.74 inches (or 252 x 297 x 69.6 millimeters), with a 10.4-inch display screen. A number of accessories can be purchased along with the 2711P-T10C22D9P, including a variety of protective overlays, power terminal blocks, SD (Secure Digital) cards, and battery replacements, and it has several certifications including but not limited to ATEX Zone 2, 22, CE (LVD), and the standard only EAC.
