Allen Bradley 2711P-RP2 PowerFlex

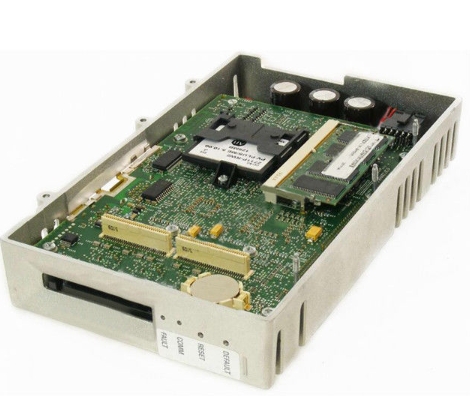

The Allen-Bradley/Rockwell Automation 2711P-RP2 logic module is a DC-powered logic module. It is designed to be mounted on the back of a display module from the Allen-Bradley Panelview Plus 700, 1000, 1250, or 1500 series. The 2711P-RP2 logic module and the display module together make a Panelview terminal that can control industrial machines and systems. This logic module is equipped with 128 MB of flash memory and 128 MB of RAM. The 2711P-RP2 logic module is also equipped with an Ethernet port.
Technical specifications for 2711P-RP2
CommunicationOne (1) RS232; One (1) Ethernet; Two (2) USB
Product TypeLogic Module
BrandAllen-Bradley
Manufacturer:Rockwell Automation
Product Family:PanelView Plus Operator Terminals
Memory:128 MB Flash/ 128 RAM
Compatible Hardware:PanelView Plus 700-1500
Available versions:Series A-G
Status indicators:Red and Green LED
Interfaces:Ethernet port, serial port, two USB ports, CompactFlash card slot
Support for RAM replacement / upgrade:Yes
Operating Temperature:0-55 Degree Celsius
Power input:24VDC
Power Dissipation:70 Watt
Part Number/Catalog No.2711P-RP2
SeriesPanelView Plus 700 to 1500 Logic Modules
Flash Memory128 MB
RAM Memory128 MB
InputDC
FeaturesEthernet, Serial, 2 USB ports, and CompactFlash Card Slot
CompatibilityNot Compatible with the PanelView Plus 6 Terminals
MountingDIN rail
Description
The PanelView Plus operator terminal component with part number 2711P-RP2 is a logic module that has a built-in internal memory of 128 MB Flash Memory and 128 MB Random Access Memory. This logic module is compatible for installation to PanelView Plus 700-1500 operator terminals.
The 2711P-RP2 is attached to the display module. It hosts a variety of communication interfaces as well as the supply voltage terminal. Specifically, it has One (1) Ethernet Communication Port, One (1) Serial communication terminal and Two (2) USB ports. It is powered by an external 24VDC Power supply with a Power Dissipation of 70W.
A PanelView Plus and PanelView Plus CE operator terminal is supplied by Allen-Bradley with a display module and logic module as a minimum. These components create a fully functional hardware. With this, the 2711P-RP2 is a replacement part to the existing unit. It may be a direct replacement or an upgrade. Additionally, the internal memories such as Random Access Memory (RAM) and Flash memory may be upgraded. The built-in upgradable memory of the 2711P-RP2 is 128 MB Ram and 128 MB Flash memory.
