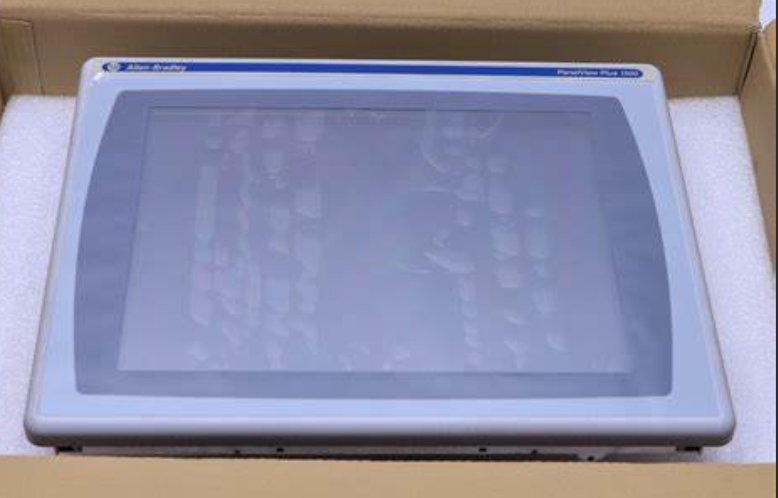

Allen Bradley 2711P-RDK15C PanelView Plus Display Module
The Allen-Bradley/Rockwell Automation 2711P-RDK15C terminal is a Panelview Plus 1500 series display module. It acts as an interface between an industrial machine system and the users of the system. The 2711P-RDK15C display module has a display screen which is 15 inches wide. This 15-inch screen supports color graphics.
Technical specifications for 2711P-RDK15C:
Mechanical
Width : 469 mm
Height : 330 mm
Depth : 65 mm
Weight, approx : 4.6 kg
Cutout dimensions : 305 x 419 mm
Electrical
Number of pixels, vertical : 768
Number of pixels, horizontal : 1024
Display size : 15 inch
Luminance : 300 cd/m2 (Nits)
Input voltage : 85...264V AC
Backlight : CCFL, 50000 hours life, minimum
Operator input : Keypad
Power consumption : 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC)
Operating force, keypad : 340 g
Line frequency : 47 Hz
Remote power input voltage : 85...264V AC
Remote power consumption : 120VA maximum
External CompactFlash storage : 512 MB maximum
PCI slot available power supply, max : 11 W DC, 5 W AC
Touch screen : Analog resistive
Actuation rating, keypad : 1 million presses
LED indicators : COMM (Green), fault (Red)
Battery life : 4 year minimum at 25 °C (77 °F)
Keypad function keys : Function keys, numeric and navigation
Clock : Battery-backed, +/-2 minutes per month
Application flash memory : 20 MB for logic modules, series A to D
