2711P-K6M20D

Allen Bradley 2711P-K6M20D PowerFlex Brand new

Allen Bradley  2711P-K6M20D  PowerFlex

  • Item no.:

    2711P-K6M20D
  • Payment:

    T/T
  • Market price:

    $66
  • Price:

    $99
  • Product origin:

    USA
  • Color:

    New sealed
  • Goods stock:

    11
  • Lead Time:

    In stock/1-3days

Allen Bradley 2711P-K6M20D PowerFlex

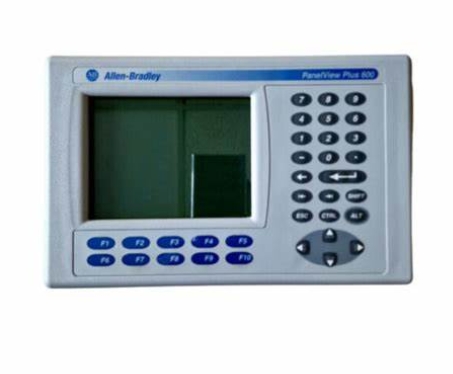

The Allen-Bradley 2711P-K6M20D is a Panelview Plus 600 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 5.5-inch monochrome display with embedded Ethernet, RS-232, USB and Communication Module Interface. This operator terminal has a keypad input interface.





Technical specifications for 2711P-K6M20D

Brand:Allen-Bradley

Manufacturer:Rockwell Automation

Product Family:PanelView Plus Operator Terminals

Product Type:PanelView Plus 600 Standard Terminals

Display Type:Grayscale passive matrix, film compensated super-twist nematic (FSTN)

Lifecycle status:Discontinued

Backlight:Grayscale passive matrix, film compensated super-twist nematic (FSTN)

Display Size:5.5 inches

Display Area:112 x 84 mm (4.4 x 3.3 in.)

Resolution:320 x 240

Keypad:1 million presses

Keypad function keys:F1-F10 function keys (F1…F10), Numeric input, navigation

Internal memory:32 MB Flash/64 MB RAM

Integrated ports:Ethernet, RS-232

Input Voltage range:18-32VDC

Part Number/Catalog No.2711P-K6M20D

SeriesPanelView Plus 600

Module TypeOperator Interface Terminal

Input TypeKeypad

Power Supply24 Volts DC

CommunicationRS-232, USB, 2 Ethernet ports

Display5.7-inch Monochrome

Product Lifecycle Status*Discontinued/Obsolete



Description:

The Allen-Bradley 2711P-K6M20D is a PanelView Plus 600 terminal. It has a stainless-steel domed membrane keypad input, as well as a grayscale display. This terminal’s keypad consists of numeric keys, navigation keys, and 10 user-configurable function keys that users can assign their own labels to. The keypad responds to gloved and ungloved fingers. It also features a 5.5-inch screen that is a monochrome passive matrix, film compensated super-twist nematic type and has an image contrast ratio of 0.16875. The display resolution of this screen is 320 x 240, it has 32-level grayscale graphics, and its display area is 4.37 x 3.30 inches. While the screen is backlit with LEDs, note that the backlight is not replaceable. The 2711P-K6M20D also comes with a time clock that is battery-backed and used for timestamps of critical data. The clock has an accuracy of +/-2 minutes each month. The 2711P-K6M20D has a 24 Volts DC nominal input voltage and an input voltage range of 18 to 30 Volts DC. It also has a maximum DC power consumption of 25 W or 1 Amps at 24 Volts DC and a non-condensing relative humidity of 5 to 95%. Its operating temperature is 0 to 55 degrees Celsius, while its non-operating temperature is -25 to 70 degrees Celsius. The 2711P-K6M20D also has an operating shock of 15 g at 11 milliseconds and a non-operating shock of 30 g at 11 milliseconds. The terminal has an approximate weight of 2.05 pounds and measures 6.58 x 10.47 x 3.86 inches. It comes with a 64-MB RAM and 64-MB non-volatile flash memory, with 20 MB dedicated to application storage.
