Allen Bradley 2711P-K4M20D PowerFlex

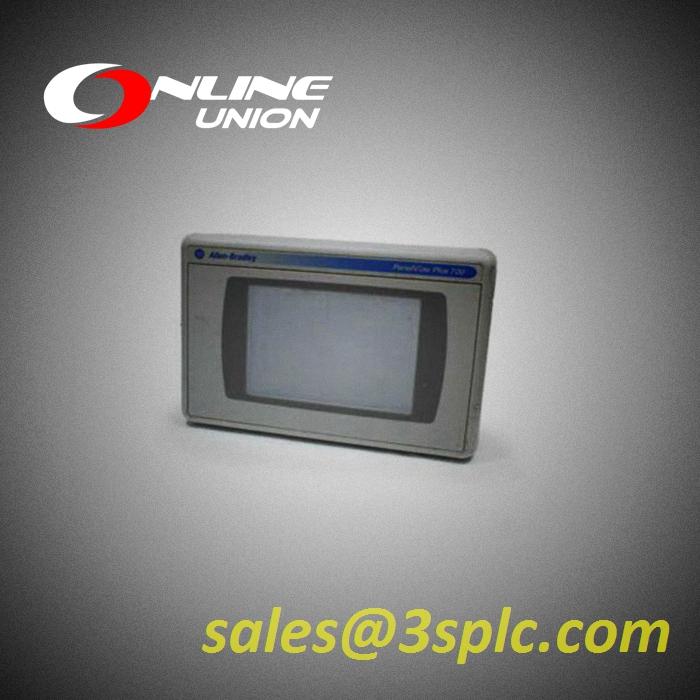

The 2711P-K4M20D is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 400 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 3.8-inch Grayscale passive matrix, film compensated super-twist nematic (FSTN) display. It has a keypad assembly that acts as the operator interface and provided with multiple communication interfaces such as, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports.
Technical specifications for 2711P-K4M20D
Brand:Allen-Bradley
Part Number/Catalog No.:2711P-K4M20D
Display Size:3.8 in.
Manufacturer:Rockwell Automation / Allen-Bradley
Product Family:PanelView Plus Graphic Terminals
Sub Category:PanelView Plus 600
Display Type:Grayscale passive matrix, film compensated super-twist nematic (FSTN)
Display Area:77 x 58 mm (3.0 x 2.3 in.)
Resolution:320 x 240
Keypad interface:Keypad , numeric and navigation keys
Operating force:340 g
Actuating lifespan:1 million presses
Terminal Memory:Series A: 5 MB Series B: 10 MB
Communication ports:Ethernet, RS-232, 2 USB host
Power Supply Input Voltage range:18-30VDC
Power Consumption:25 W max (1.0 A at 24V DC)
Product Line:Panelview Plus 400
Display Color:Grayscale
Input Type:Keypad
Communication:Ehternet and RS-232 Ports
Input Power:DC
Memory:64 MB
Series:A, B, C, D, E
Product Lifecycle Status*:Discontinued/Obsolete
Description
The Allen-Bradley 2711P-K4M20D is a PanelView Plus 400 operator terminal. This operator terminal is used by plant operators to monitor and control industrial machines or processes through the provided 3.8-inch monochrome display screen and embedded keypad assembly.
With a monochrome screen, this operator terminal can be designed with black and white graphics. Additionally, the 3.8-inch display screen can be optimally designed to provide graphical or textual representation of the process, providing the required control and monitoring points of the process. The embedded communication interfaces with this operator terminal includes One (1) Ethernet, One (1) RS232 and Two (2) USB interfaces. Ethernet supports 10/100 Mbps communication speed over LAN cables and may be implemented up to 100 m range which may be extended by using ethernet switches or media conversion. This communication interface support communication with simultaneous automation partners. With RS232, point-to-point communication is achieved over short distance communication. This port supports Allen-Bradley DF1 and DH485 communication. USB ports are primarily used to connect peripheral devices such as mouse, keyboard and removable flash drives.
